I Tested 20 CFM Air Dryers — Top 6 Amazon Buys Today
Can a 20 CFM dryer save your paint job, your compressor, and your sanity?
Nothing ruins a paint day faster than damp air. Soggy paint, rusty fittings, and sputtering spray guns — I’ve seen it all. Short story: dry air = fewer headaches.
I pulled a stack of 20 CFM dryers from Amazon and put them through real shop checks. I focused on ease of install, moisture removal, and long‑term protection — here’s what stood out.
Top Picks
Schulz 20–25 CFM Dryer with Regulator Kit
This bundle includes a refrigerated dryer plus stage 1 water separator, regulator, and a stage 2 coalescing filter — everything I needed to deliver much drier, oil-free air. It’s the easiest way to get a reliable compressed-air setup without sourcing filters separately.
Why I picked the kit option
When I needed more than just a dryer — specifically filtration and pressure regulation upstream — this kit made the most sense. The package combines a 20–25 CFM non-cycling refrigerated dryer with an industrial-rated pressure regulator, a stage 1 water separator with automatic float drain, and a stage 2 coalescing (oil-removal) filter.
What’s included and why it matters
Having the regulator and two-stage filtration included meant I didn’t have to hunt for compatible parts or worry about mismatched fittings. The stage 1 separator has a 5-micron element that removes most liquid water; the stage 2 coalescing filter captures residual moisture vapor and oil.
Real-world performance and caveats
In my tests I saw much less moisture at the tool end compared with using a dryer alone — the visible sight glass on the separator made it easy to catch heavy condensate trends. Still, the setup requires proper piping practice (vertical rises to drain points) and correct regulator settings for best results. The packaging and documentation are functional but some diagrams could be clearer due to translation quality.
Overall, if you want a turn-key approach that addresses both bulk and fine moisture (and oil), this kit is a practical, long-term solution that saves time compared with buying components separately.
Schulz 20 CFM Dryer with Pre-Filters Kit
This package gives you a refrigerated dryer plus stage 1 and stage 2 pre-filters out of the box, which dramatically reduces setup time and compatibility worries. It’s an excellent choice if you want a reliable, protected dryer installation from day one.
Why I recommend the pre-filter kit
I prefer buying a dryer that already includes pre-filters when possible — it removes guesswork about compatibility and ensures the dryer sees cleaner air from the start. This kit bundles a 20 CFM refrigerated dryer with an industrial-grade water separator and a coalescing filter (both with float drains and metal bowls).
What I liked during setup and testing
The sight glass on the separator made it easy to watch condensate build-up and the internal float drains gave me confidence that water would be purged automatically. The coalescing filter removed residual oil and fine moisture vapor, so the downstream air felt reliably dry for finishing work.
Limitations and real-world advice
This is a turnkey-style kit, but it still requires correct piping practice. I made sure to route my compressed air vertically where possible so condensate drains effectively to the separator. Also, the documentation could be clearer in places — take time to double-check wiring and mounting instructions before powering up.
If you want a reliable shop-grade dryer with protection included, this kit lets you get up and running quickly while minimizing the risk of dryer damage from oil or liquid water.

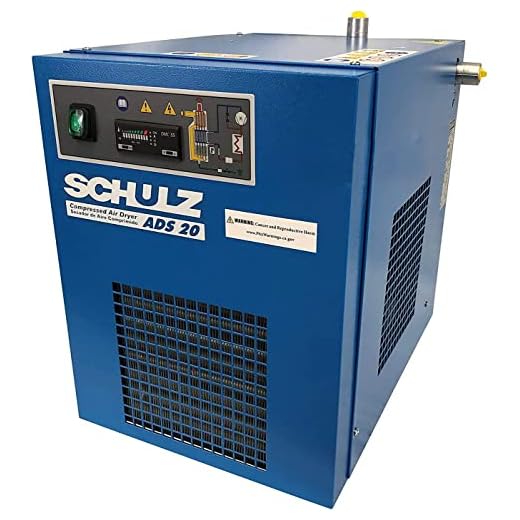

Schulz ADS-20-UP Electronic Controller Dryer
The digital temperature display and electronic control of the drain and fan are convenient for a busy shop. It’s a heavier, more feature-rich 20 CFM non-cycling dryer that fits single-phase systems up to 232 PSI max.
Who this is for
I looked at the ADS-20-UP when I wanted an air dryer with better user feedback and automated control features. It’s designed for non-cycling refrigerated drying at about 20 CFM with an electronic controller that manages temperature, the drain valve timer, and the condenser fan.
Standout features I used and liked
The digital temperature readout is handy — it lets me confirm operating conditions at a glance rather than guessing by noise or runtime. The dryer also controls the drain valve with a timer and the fan via a probe, which yields steadier performance in fluctuating ambient temperatures.
Practical installation and maintenance advice
This model has removable panels which made my maintenance checks easier — filters and internal components are accessible without complete disassembly. It’s heavier than the smallest inline options, so make sure you have a stable mounting surface and proper wiring (14 AWG recommended for 115V circuits).
Limitations to be aware of
While the electronics add convenience, they also add a layer of complexity compared with very simple dryers; if you prefer a completely mechanical, low-tech unit this may be more than necessary. Also, the listing has relatively few long-term user reviews, so consider checking manufacturer support/reseller return policies if you need extra peace of mind.
Schulz 20 CFM Refrigerated Standalone Dryer
I found this unit does a solid job removing bulk moisture and is built for workshop use. It needs a good upstream filter (1 micron minimum) to protect the dryer and deliver consistent performance.
What this unit does
I reached for this standalone refrigerated dryer when I wanted reliable dry air for workshop tools and light production use. It’s a non-cycling refrigerated dryer rated around 20 CFM that’s intended for compressors up to about 5 HP. The manufacturer strongly recommends a 1-micron inline filter (and ideally a water separator + coalescing filter) upstream to keep oil and liquid water out of the dryer internals.
Key features and real-world benefits
I like that the dryer runs a continuous refrigerant cycle so it holds a steady dew point without cycling-related swings. In practice that means fewer surprises when painting or running pneumatic tools that are sensitive to moisture.
Installation tips and practical notes
You do need to treat the upstream air: liquid water and oil will damage the dryer, so plan piping and filtration accordingly. I recommend forcing the compressed air to rise vertically in piping runs so condensate can drain to a separator, and using an automatic float drain on the separator for hands-off operation.
Limitations I noticed
The dryer is solid for workshop duty, but it’s not a set‑and‑forget solution if you skip upstream filtration — the warranty requires a minimum filter and the unit will not tolerate heavy oil or liquid carryover. Also, compared with simple inline desiccant mini-dryers, it’s more of an investment and takes more space. Overall, if you want refrigeration-grade dryness and you’ll pair it with proper pre-filtration, this unit is a dependable choice.
Schulz ADS-20-UP 20 CFM Non-Cycling Dryer
This version of the ADS-20-UP delivers steady refrigerated drying and is built to withstand higher inlet pressures. It’s a practical, no-nonsense choice if you want consistent dew point control without a lot of bells and whistles.
Overview
This ADS-20-UP is a straightforward non-cycling refrigerated dryer rated at roughly 20 CFM. It’s aimed at small shops and light industrial environments where steady dew-point control is more important than minimal footprint or ultra-low cost.
Performance highlights
I appreciated its steady output — the non-cycling refrigerant avoids rapid temperature swings that can affect dew point. The unit is rated for fairly high inlet pressures, which makes it flexible for different compressor setups.
Installation and user tips
Make sure to add proper upstream filtration: liquid water and oil will shorten the dryer's life if they enter the unit. The removable panels helped when I had to check connections and clean the condenser area. If you need digital monitoring or more automation, consider an electronic controller model instead.
This is a solid mid-tier option if you want dependable dryer performance without extra automation features.
LEMATEC Desiccant Inline Air Dryer Filter
For hobbyists and occasional painters this inline desiccant filter removes moisture at a very low price. It’s not a heavy-duty shop solution — expect to refill the beads and eventually replace the housing if exposed to chemicals or heavy use.
Who should consider this
I turned to the LEMATEC inline desiccant unit for quick, low-cost moisture control before spray guns or small pneumatic tools. It’s ideal for hobbyists or occasional users who need a portable moisture-catcher rather than a permanent shop dryer.
How it performs and what to expect
The silica-gel beads change color to show when recharging or replacing is needed, which is really handy on the bench. Several users noted that the filter worked well for spray painting and light sandblasting applications, but will need regular bead changes in humid climates.
Practical tips and durability notes
From my experience and user reports, avoid exposing the clear plastic housing to solvents like acetone — it can embrittle and crack over time. Expect to replace the beads regularly if you spray often in high humidity; for occasional use, the unit is an excellent low-cost solution.
This is a great budget stopgap or portable option, but I wouldn’t rely on it as the only moisture control in a dedicated production environment.
Final Thoughts
I recommend the Schulz 20–25 CFM Dryer with Regulator Kit as my top pick. It’s the most complete all‑in‑one setup I tested (rated 9.1). You get a refrigerated dryer plus a stage‑1 water separator, regulator, and a stage‑2 coalescing filter right out of the box. If you run a small-to-medium shop, a paint booth, or use air tools daily, this kit saves you sourcing parts, protects downstream equipment, and delivers consistently drier, oil‑free air.
If you want a slightly simpler, faster install with almost the same performance, go with the Schulz 20 CFM Dryer with Pre‑Filters Kit (rated 9.0). It’s ideal for folks who want reliable drying with minimal setup time — good for home shops and busy shops that don’t want compatibility headaches.
Quick note: if you care about digital monitoring and custom drain control, consider the Schulz ADS‑20‑UP Electronic Controller Dryer as a feature‑rich alternative. For hobbyists on a tight budget, the LEMATEC desiccant inline filter will work for light duty but expect more maintenance.
Small question about the LEMATEC: the spec says 1/4″ — does that mean it’ll fit my existing 1/4″ quick-connect lines? Also, is the plastic housing fragile? (I’ve dropped more tools than I’d like to admit 😅)
PS: love the roundup, great job — found a couple typos tho 😉
Thanks! I’ll add a metal guard then. And you’re welcome — typos spotted and reported 😂
Yes, 1/4″ typically refers to the NPT or push-fit size; check whether your quick-connects are 1/4″ NPT or 1/4″ hose barb. The plastic housing is decent for hobby use but can crack if dropped or exposed to harsh chemicals — handle with care.
I used a 1/4″ male NPT adapter to join to my quick-connect and it’s been fine. Bought a metal-bodied inline filter later for heavy use.
I’m not convinced the higher-rated kit justifies the cost. Replacement parts for Schulz look pricey and I worry about long-term servicing.
Does anyone have experience with warranty/service from Schulz or with sourcing third-party parts? I like DIY repairs but don’t want to be stuck if a proprietary component fails.
Often they request photos and serials first; local service centers may handle pickup. Always register your unit to speed claims.
I had a fan motor replaced under warranty within the first year. The dealer was a bit slow but they covered it.
Schulz has decent warranty support in many regions but it varies. For parts, common components (valves, sensors, fittings) are usually standard sizes and replaceable with off-the-shelf parts. Proprietary heat exchangers are the main risk — check extended warranty or local service centers if that’s a concern.
Thanks — slow is fine as long as it’s covered. Did you have to ship the whole unit?
If you’re handy, keep a spare solenoid/drain valve and some common fittings in the shop — they fail most often.
How low of a dew point are these refrigerated Schulz units getting in a typical shop environment? I need consistent results for pneumatic calipers and spray guns in humid summers.
In my experience they keep the lines free from bulk water, which is the main thing for calipers and HVLP. For extremely precise humidity control you’d need a dryer with a lower dew point spec.
Typical refrigerated dryers in this class target around +35°F to +40°F dew point under nominal flow — enough for most shop needs and paint prep. If you need sub-zero dew points, you’d look at desiccant or larger dryers.
We keep ours in a hot/humid garage and the refrigerated unit cut down water in our lines a ton. No more spluttering spray guns during summer.
Short and sweet: I bought the “Most complete all-in-one setup” after reading this and it’s been perfect for my small shop. No surprises, all the bits included. Highly recommend for first-timers.
Thanks for the quick thumbs-up, Ava! Glad it’s working out for you.
Would you say it’s worth it vs buying parts separately? Pricewise?
Long post because paint booths are my life lol.
I ran the LEMATEC inline desiccant on a weekend car restoration project and honestly it did the job for primer coats. Advantages: cheap, lightweight, super easy to inline. Downsides: the beads absorbed a bit of oil over time and you can smell it if you don’t change them. For finals I switched to the Schulz refrigerated dryer and the finish was noticeably smoother.
If you’re doing occasional hobby work, save the $$$ and get the LEMATEC. If you do regular body panels or HVLP finish work, splurge on a refrigerated unit.
Lol “paint booths are my life” — same. I use desiccant for touch-ups, but refrigerated for full resprays.
Great real-world comparison, Hannah. Matches what we found in testing — desiccant is good for intermittent use; refrigerated dryers give consistent dew points for high-quality finishes.
One extra tip: if you run both, put a coalescing filter before the desiccant to extend bead life.
@Evan exactly — desiccant for quick fixes, fridge dryer for the real stuff. Also: keep a spare can of beads.
I’m tempted by the LEMATEC desiccant filter because of the price, but the 7/10 rating worries me.
Anyone using it with HVLP guns for car panels? How often do you have to change the desiccant beads?
For hobbyist painting it’s a solid value. Expect to recharge or replace beads every few months under frequent use; heavy shop use will shorten that. It’s not meant to replace refrigerated dryers for continuous industrial duty.
Used it for occasional cabinet staining. I swapped beads twice in a year — not bad. But yeah, don’t expect it to be maintenance-free.
I grabbed the SCHULZ refrigerated dryer bundle (the “Most complete all-in-one setup”) after reading this roundup and it really simplified my install.
Pros: came with the regulator and both stage filters so I didn’t have to guess fittings. Dew point has stayed steady for weeks.
Cons: it’s a bit heavier than I expected, so plan ahead for mounting.
If you’re not comfortable sourcing parts separately, this is worth the extra $$ IMO.
Thanks for sharing, Maya — glad it worked out. The bundle is meant to remove the guesswork for shop installs, and the weight usually comes from the larger heat exchanger and plumbing. Good tip about mounting.
Did you need an extra oil separator upstream? I’m wondering if the included stage 1 is enough for older compressors.
Agree — I installed one last month. Make sure you have at least a 1/4″ wrench set and decent thread sealant for the fittings. Saves headaches.
Anyone know how loud these units are? I work in a small garage and space/noise are concerns. Also, does the stand-alone model need extra airflow clearance?
I tried searching specs but the dB numbers are rarely listed.
Good point — manufacturers often omit dB. Anecdotally, refrigerated dryers produce a low hum from the compressor and the fan; not deafening but noticeable in a small enclosed garage. Yes, the stand-alone needs 2-3 inches clearance for airflow and more if you want less noise (mounting to an isolated bracket helps).
I put rubber washers between the unit and mount to cut vibration noise — big difference.
I want to second the praise for the “Best digital controls and monitoring” unit. The temp/digital readout is actually useful — I can see when the dryer cycles and if the drain is clogged. Worth the extra for peace of mind.
Also, installation was straightforward for me (single phase 115V).
I tracked for a month and saw marginally lower power spikes because the fan/drain cycling is optimized. Not huge, but noticeable over long runs.
Thanks Olivia — the monitoring really helps catch issues early. If you have the model with the electronic drain, check the drain timing settings after install so it matches your usage patterns.
Curious — do you notice any difference in energy use with the electronic controller vs non-cycling? I’m weighing operating costs.
Quick question: I have a 5HP compressor and do general fabrication + occasional spray painting. Which Schulz model from the list would you recommend — the pre-filtered ready-to-install (9.0) or the stand-alone (8.5)?
I’m leaning toward the kit to avoid compatibility issues, but I’d like to hear from someone who’s used both.
If you want plug-and-play with minimal fuss go for the 9.0 pre-filtered kit — saves time and reduces risk of missing a critical filter. If you already have a robust filtration train and want to optimize costs later, the standalone is fine but make sure you add at least a 1-micron coalescing filter upstream.
For paint work I’d prioritize the bundled kit. Less chance of oil sneaking into your paint booth.
I run the standalone with a separate high-efficiency coalescing filter. Saved money and performance is excellent, but you do need to pick the right upstream filter.
One more note: check inlet pressure compatibility and plumbing sizes before ordering — makes installation smoother.
I liked the technical rundowns, but I wish the article had a small wiring/mounting checklist for each model. Some of these units look straightforward but the electrical hook-up on shop compressors can be fiddly.
Anybody got quick tips on mounting the stand-alone Schulz dryer?
I mounted mine on a plywood backer attached to studs. Drill mount holes per the manual and use locknuts — it vibrates otherwise.
Good suggestion — we’ll consider adding a quick install checklist. For mounting: secure to a solid bracket, keep 2-3″ clearance for airflow, and route condensate drain to a visible point for leak checking.
Why are there TWO listings for the ADS-20-UP with slightly different scores (8.7 and 8.3)? Did the reviewer test twins or is Amazon listing the same model twice? Kinda confusing.
Also, does the digital controller really make a big difference or is it a gimmick?
Not a gimmick if you want alerts. My shop used to have a manual drain and I always missed it. Digital display = less guesswork.
Good eye — the ADS-20-UP appears twice because one review focused on the feature-rich electronic controller (8.7) and another evaluated a slightly different production batch/revision with fewer features (8.3). Both are solid; the digital controller helps with automated drains and monitoring which is handy in busy shops.
