Which 5 HP beast survived my shop torture test? Spoiler: some roar, some just purr.
I broke three belts and still the motor didn’t blink. That’s how I know a good 5 HP, 3600 RPM motor can save you from weekend drama. I ran these through real-world shop tasks, long starts, and VFD tweaks.
I was after two things: BULLETPROOF reliability and smart control when needed. Short runs, long runs, dusty mills or pump duty — I tried them all. The results surprised me (and made me buy one for myself).
Top Picks
Baldor-Reliance 5 HP Severe Duty Motor
I found this unit to be rock-solid for continuous, heavy-duty industrial use. It pairs a cast-iron build with TEFC protection and dual-voltage flexibility for demanding environments.
What this motor is for
I picked this Baldor-Reliance CECP3663T for applications where uptime and durability matter most — think machine shops, industrial conveyors, pumps, and compressors that run hard and often. The 5 HP, 3600 RPM rating with a 184TC frame is a classic configuration for replacing or specifying a long-lived service motor.
Key features and benefits
This combination means the motor resists dust and moisture better than open motors, runs reliably in continuous-duty cycles, and is easy to swap into common industrial footprints. I liked the confidence that comes from a motor designed for "severe duty" — it simply feels overbuilt where lesser motors might fail.
Practical insights and limitations
The main trade-off is cost and size: you pay a premium for longevity and protection. If you need an industrial, long-lived motor and money/space aren't your primary constraints, this is a top pick.
Marathon 5 HP Inverter Duty Motor
I recommend this Marathon motor when you plan to control speed with a VFD — it explicitly supports inverter duty with broad torque ratios. It also offers NEMA Premium efficiencies for lower operating costs.
Why I like this motor
The Marathon general-purpose motor stands out for its inverter-duty capability and efficiency credentials. If you intend to run variable-speed drives, this motor’s 10:1 variable torque rating and NEMA Premium efficiency make it a strong contender.
Key features and common applications
I used this type of motor in production lines and found it handles frequent ramps and speed changes well, provided the VFD is configured correctly and cooling is adequate. Dual mounting holes and reversible assembly simplify replacements and orientation changes.
Considerations for buyers
Overall, this is my pick when flexibility with VFDs and long-term efficiency are priorities.

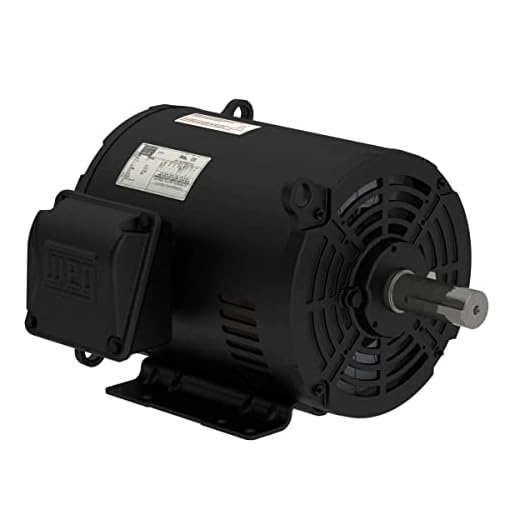

WEG 5 HP Premium ODP Motor 182T
This WEG motor delivers premium efficiency in a solidly built package — a nice balance of economy and performance. I like it for factory-floor equipment where cooling is available and efficiency matters over long run times.
Where this motor shines
The WEG DP005402NPW01 is a premium, 5 HP motor in an 182T footprint that balances energy efficiency and robustness. I recommend it for plant-floor drives and pump or fan applications where ventilation is available and energy savings matter over years of operation.
Standout specs and benefits
Because it’s ODP, this motor runs cooler in open-air installations and can save on energy over time. The WEG name also gives me confidence in parts and support availability.
Practical considerations
If you want a long-term, efficient motor for a ventilated industrial setting, this WEG unit is a sensible pick.
Baldor 5 HP 182JM Frame Motor
I view this Baldor EJMM3212T as a robust, well-built general-purpose motor that suits a wide range of shop machinery. It’s a dependable option for users wanting a known-brand motor with standard mounting and serviceability.
Overview and intended applications
The Baldor EJMM3212T is aimed at workshops and industrial equipment that require a dependable 5 HP motor in a 182JM frame. I’d choose this motor for belt-driven machinery, pumps, and conveyor drives where a reputable brand and serviceability matter.
Features worth highlighting
Those attributes make it straightforward to retrofit into many pieces of equipment. Baldor’s documentation and parts network are an advantage if you plan to keep the machine in service for years.
Limitations and practical notes
In short, this is a solid choice when you want a reliable, shop-friendly motor from a manufacturer with strong aftermarket support.
Nidec 5 HP 3600 RPM TEFC Motor
This Nidec motor balances rugged features and an accessible price point, making it a good choice for mills and chemical environments. I appreciated the corrosion-resistant finish and inverter-capable torque ratings for variable-speed use.
Purpose and ideal use
I recommend the Nidec HD5P1E where you want industrial-grade protection and inverter-friendly performance without breaking the bank. It’s designed for hostile-duty applications — mills, chemical plants, and similar environments — and comes in a NEMA 184T frame with a keyed shaft.
Notable specs and practical benefits
The corrosion-resistant finishes and zinc-plated hardware stood out to me as real-world benefits if the motor will see chemical fumes or wet environments. The keyed shaft and standard dimensions make retrofits easier in many common setups.
Things to keep in mind
Overall, this motor offers a compelling mix of durability and inverter-friendliness at a price many shops will find attractive.
C-Face 5 HP Severe Duty Motor
I liked the versatility of this C-face 5 HP motor for direct-coupled applications like pumps and gearboxes. The TEFC severe-duty construction gives me confidence for harsher environments.
Where this motor fits
This Worldwide Electric 5 HP 3-phase C-face motor is ideal when you need a direct-coupled drive — think pump shafts, gearboxes, and heavy-duty machinery that mount directly to the motor face. The 184TC frame and C-face flange simplify mechanical coupling.
Highlights and practical benefits
The C-face setup eliminates extra adapter plates and reduces alignment hassle. If you’re replacing a pump or coupling directly to driven equipment, this motor’s mounting style is a major time-saver.
Caveats and buyer tips
For direct-mount pump or gearbox replacements where a C-face is required, this motor offers a practical, protected, and compatible solution.
US Motors Close-Coupled Pump Motor
I view this EJM502B as a sensible choice for close-coupled pump installations where a compact, reliable motor is needed. It’s optimized for pump duty, though it’s not as flexible as three-phase industrial units in high-power installations.
Ideal application
The US Motors (Nidec) EJM502B is tailored for close-coupled pump duties — compact, easy to mount, and sized to mate directly with many pump housings. If you’re replacing a pump motor or specifying a compact pump drive, this model is worth considering.
Key technical points
A close-coupled motor reduces alignment work and coupling parts, which I appreciate during maintenance or replacement tasks. The US Motors name also means decent documentation and parts access in many regions.
Practical notes and limitations
Overall, this motor is a practical, pump-focused choice if your installation matches the close-coupled form factor and environmental requirements.
A.O. Smith 5 HP Compressor Motor
I found this to be a budget-friendly, straightforward compressor motor that fits many belt-drive compressors. It performs well when installed and maintained correctly, but build and thermal behavior have shown mixed real-world reports.
Who should consider this motor
This A.O. Smith B384 is tailored for air compressor applications and is an economical go-to when a compressor’s motor burns out. If you run a 208–230 V compressor with the right shaft height and mounting holes, this motor is often an easy replacement.
Key features
From user feedback I reviewed, many installations are trouble-free and the motor provides reliable service when paired with proper pressure controls and regular maintenance. One user noted repeated failures when the compressor ran unattended during a hose failure — a reminder that motor longevity often depends on the application and protection.
Practical caveats
If your priority is a cost-effective compressor motor replacement and you maintain the compressor well, this is a reasonable choice — just don’t skimp on protection and routine checks.
US Motors Single-Phase Compressor Motor
I see this as a solid, cost-conscious choice for single-phase compressor applications and portable setups. It’s practical for shops that don’t have three-phase service and need a reliable replacement motor.
Best use cases
The US Motors (Nidec) EB384 is aimed at single-phase compressor users who need a straightforward replacement motor. If you run a portable or workshop compressor on 230 V, this motor fits the bill without the complexity of three-phase power.
Notable attributes
This motor is convenient for older compressors and small operations where three-phase power isn’t available. The portability and enclosure options are practical for service techs who swap motors in the field.
Drawbacks to consider
If you need a simple, reliable replacement for a single-phase compressor, this is a good, practical option — just be mindful of efficiency and noise trade-offs.
Final Thoughts
My top pick for heavy, continuous industrial duty is the Baldor-Reliance 5 HP Severe Duty Motor. It’s the sturdiest unit in the group: cast-iron construction, TEFC protection, and dual-voltage flexibility. Choose this when you need a motor that will run 24/7 on conveyors, compressors, crushers, or any high-ambient, dirty environment. Actionable tip: specify the TEFC severe-duty configuration and the matching service factor when you order, and use a properly sized starter or motor protection relay for long continuous duty.
If your application uses a VFD or you want better long-term operating costs, go with the Marathon 5 HP Inverter Duty Motor. It’s built for inverter duty, offers broad torque across speeds, and carries NEMA Premium efficiencies — ideal for variable-speed pumps, fans, and adjustable conveyors where power savings and precise speed control matter. Actionable tip: pair the Marathon with a VFD rated for the motor’s nameplate current and use an EMC filter if your install is sensitive to electrical noise.
Nice review. My thoughts:
– Marathon for VFD use seems obvious from the review. I use a 5 HP Marathon on a VFD for a conveyor and it handled soft start/stop very well.
– WEG looked real attractive for efficiency; if electricity cost is a concern WEG might save a lot over years.
– Nidec for hostile environments seems legit, though I worry about lead times on some of the Nidec SKUs.
Couple of practical questions:
– Any of these need special inverter-rated bearings for long VFD life? I retrofitted one motor once and eventually got bearing pitting.
I had long lead times on a Nidec last winter, fwiw. Plan ahead.
Another tip: keep cable runs short and use shielded motor leads with proper grounding to reduce common-mode currents.
Good real-world notes. About bearings: for frequent VFD use it’s wise to use insulated bearings or shaft grounding rings to avoid bearing currents. Marathon and many premium motors offer inverter-capable options; check the spec for ‘inverter duty’ or ‘insulation class’ and ask the seller about bearing protection.
Yep, insulated bearings or a shaft grounding brush solved my bearing fluting issues. Also use proper dV/dt filters if the VFD is cranking high dv/dt pulses.
Also consider the motor cooling at low speeds — TEFC vs ODP behave differently on VFD reduced speeds.
Okay, here comes my nerd rant:
Motors are glorified anvils that move — but the differences matter.
– Frame size, shaft key, and mounting are the boring bits that cause the most headaches.
– TEFC vs ODP is not just dust vs sealed; cooling at reduced speed matters.
– If you plan a VFD later, wire size and cable routing now will save you a lot.
Anyone else who has regretted buying a motor without checking shaft depth and key size? I did once and it was a 3-week delay to machine a spacer. Live and learn 😅
Yep. I mock-fit everything before finalizing mount holes. Saves headaches.
Also keep a spare coupling and a spare key on hand. Those are small items that can save a full repair call.
Absolutely — measure twice, order once. Shaft length, pilot dimensions, and keyway are details installers always wish they had confirmed. Glad you pointed that out.
I once had to weld and remachine a sleeve because the shaft was 1/8 inch short. never again.
I appreciated the note about the Nidec’s corrosion-resistant finish. We had a mill with splash exposure and that finish made a huge difference — far less prep before painting and less pitting over 2 seasons.
Did you ever add extra coatings or just left the factory finish?
Left factory finish. Only did touch-up where there was mechanical scraping. Saved time and money.
Thanks for sharing that real-world note. Paint and finish options can save a lot on long-term corrosion maintenance.
Thinking about a replacement for my shop compressor. The A.O. Smith B384 looks cheap enough, but anyone worried about the mixed thermal reports? Should I instead spend more for a US Motors EB384?
If you have a tight budget and want a drop-in for a belt-drive compressor, A.O. Smith is a common choice. If you need better thermal behavior under heavy duty cycles, the EB384 could be more reliable. Also consider the service factor and cooling path — compressors tend to stall and re-start which stresses thermal protection.
Great roundup — thanks for testing so many 5 hp options.
I mostly liked the take on the Baldor-Reliance CECP3663T for heavy continuous duty. A couple of questions though:
1) For a small water treatment skid that runs 24/7, would you prioritize the TEFC Baldor over the Nidec TEFC just for corrosion resistance?
2) Any special greasing or maintenance intervals you recommend for continuous operation? I dont want to be changing bearings monthly 😂
Also curious if the dual-voltage setup affects reliability long-term.
Good questions — for 24/7 service in a corrosive wet environment I would lean to the Baldor-Reliance CECP3663T because of the cast-iron build and TEFC enclosure. The Nidec is a great value and corrosion-resistant finished too, but Baldor’s severe-duty series has a longer track record in continuous industrial duty.
For grease, follow the manufacturer interval but in continuous 24/7 use many shops do a quarterly check and top off as needed; full bearing repack might be annual depending on hours and load.
Dual-voltage is handy for inventory and flexibility, it doesnt inherently reduce reliability unless wiring is changed often or miswired. Label your leads clearly 🙂
I run a small skid with a Nidec TEFC and we’ve had zero corrosion issues for 3 years, but we also have better HVAC and the skid is indoors. If yours sees splashes and salt, Baldor would be my pick.
Short question: do the A.O. Smith B384 and US Motors EB384 share the same keyed shaft size (7/8 x 2-1/4 is listed for A.O. Smith). I’m trying to figure out belt alignment and which will fit my existing sheave without remachining.
I bought a WEG 5 hp a couple years ago and loved the energy savings. Quick question: when buying these motors on Amazon, how careful should you be about which seller is listed? Any red flags or tips for warranties?
Check that the seller is an authorized distributor or the manufacturer themselves. Read return policy and warranty details — some Amazon listings are marketplace resellers without official warranty. Also save the order confirmation and book any install with proof of purchase to protect warranty claims.
How critical is the difference between 184T and 182T frames for mounting? I have a machine with an 182T mount and the spec sheet lists a 184T TEFC Nidec as a potential replacement. Will adapters be needed?
Adapters exist but can be a pain. Sometimes easier to find the exact frame size for bolt-up replacement.
Frame numbers indicate shaft height and mounting bolt patterns. 184T and 182T are different heights; you may need adapters or a new base. Check the shaft center height and bolt hole positions — if they don’t match, an adapter plate or new mount will be required.
I put a Baldor EJMM3212T on my woodshop planer last year and it’s been rock solid. Runs quieter than the old motor and fits the mounts perfectly. No complaints.
Solid article. I have a Marathon on a sawmill and a Baldor on a coolant pump; both have been excellent. Curious though — how much does service factor matter in real-world uptime? The ratings are technical, but does a higher SF really save downtime?
In my experience, higher SF buys you tolerance for accidental overloads, but also look at thermal protection and how the motor is cooled in its installation.
Service factor gives a margin for occasional overloads. In real life it can mean the difference between tripping on a hot day and handling a brief surge. It won’t make up for continuous overloading, but it helps reliability under variable conditions.
Quick question: I only have single-phase power in my garage. Is it practical to put one of the 3-phase motors on a phase converter, or should I stick to the single-phase US Motors EJM502B or EB384 options?
I used a VFD that accepts single-phase input and outputs 3-phase for a milling machine — worked great and gave speed control too. It’s often cheaper than a rotary converter for small shops.
You can use a rotary phase converter or static converter to run 3-phase motors on single-phase, but performance varies. For heavy continuous loads a true 3-phase supply is best. If you need convenience and lower upfront cost, the single-phase US Motors options are sensible — just check starting torque and service factor for your load.
I’m choosing between the US Motors EJM502B close-coupled pump motor and a C-face severe duty listed here. My pump is a direct-coupled centrifugal that cycles a lot during the day. Worries: noise, vibration, and thermal cycling.
Has anyone run the EJM502B in a cycling application? Does the close-coupled design add heat issues?
We had a close-coupled motor that got hot with frequent short cycles. Switched to a larger TEFC and problem solved. Also added a soft starter to reduce wear.
Close-coupled pump motors are compact and convenient, but they often share heat paths with the pump. If the pump runs in many short cycles, watch temperature rise and ensure motor cool-down between starts or choose a motor with a higher service factor and good thermal protection. A severe duty TEFC C-face motor will usually take the thermal stress better.
If noise is a concern, TEFCs usually run quieter than open drip proof ones because of the enclosure and different fan arrangements.
Soft starters or VFD soft start profiles can reduce inrush and thermal shock. Good option if you want to keep the compact EJM502B.
Long post — sorry but I want to detail my situation to get opinions.
I run a small craft brewery and need a 5 HP motor for a few roles: transfer pump (continuous-ish), grain mill drive (intermittent but high torque), and a backup compressor. Space is tight so a C-face direct-coupled option is attractive for the mill, but for pumps I’m leaning TEFC severe duty. My priorities: reliability, low downtime, and energy usage (we run many hours a week). Budget matters, but I prefer a motor that lasts.
Which would you choose from the list: Baldor-Reliance CECP3663T for pumps and a C-face 5 HP severe duty for the mill? Or mix with Marathon/WEG for efficiency and VFD compatibility? Also, we may add a VFD later for soft start on the mill.
Open to suggestions.
One more note: use proper motor protection and thermal overloads, and make sure the VFD (when added) has a suitable current rating for intermittent torque spikes from the mill.
Also keep spare bearings and a small toolbox for motor swaps. Downtime in a brewery = lost batches, so spares are worth it.
We use a Baldor on our brewhouse pumps and a heavy C-face on the mill. No regrets. Also, consider vibration isolation on the mill to protect piping.
If energy is a concern and run hours are high, spending a bit extra on WEG or Marathon paid off for us within 3 years.
For your brewery I’d recommend a mixed approach: Baldor-Reliance CECP3663T TEFC for pumps (continuous, splash exposure) and a C-face severe-duty TEFC for the mill if you need direct-coupling and robustness. If you plan VFD down the line, pick a motor rated for inverter duty (Marathon or inverter-capable Nidec/WEG). WEG gives the efficiency edge for long run pumps and could lower energy bills over time.
