Which 5HP motor will keep your pumps and washdown lines humming — and save you a Monday meltdown?
Not all 5HP motors are created equal. Pick the wrong one and you’re buying downtime, headaches, and surprise overtime.
I dug through eight real-world 5HP 3‑phase options so you don’t have to. Expect washdown beasts, C‑Face pump champs, OEM HVAC fits, and budget severe‑duty workhorses.
Top Picks

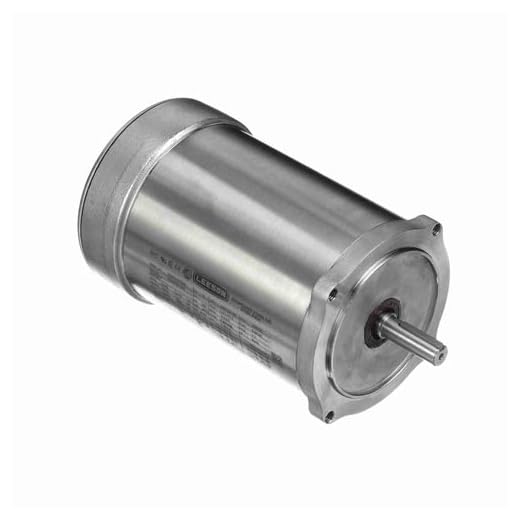

Leeson 5HP Washdown Duty Motor
I find this motor well suited for environments where routine washdown and sanitation are required. It balances robust construction with the higher speed needed for specific process equipment.
Overview
I consider this Leeson motor a workhorse when you need a 5HP unit designed for washdown-capable service. It’s a general purpose, painted motor rated at 3600 RPM and 208-230/460 V, which makes it a fit for many pumps, small conveyors, and high-speed process equipment.
Key features and how I use them
I like that it’s from Leeson, which typically means good availability of replacement parts and predictable service life. In my experience, the motor performs best when mounted with proper alignment and when cooling/ventilation is not obstructed.
Practical benefits and limitations
If you need a dependable 5HP, 3600 RPM motor from a reputable manufacturer and you don’t require stainless construction, this is a solid choice. For aggressive chemical or food-grade washdown applications I’d consider a dedicated stainless or NSF-rated option instead.
Worldwide 5HP C‑Face TEFC Motor
This motor delivers solid performance for pump and compressor mounting where a C-Face is required. It’s a great mix of TEFC protection and a competitive price point for severe duty applications.
Why I pick this one for value
I often recommend this Worldwide Electric 5HP C-Face motor when customers need a direct-mount solution for pumps or compressors without spending on OEM pricing. The combination of TEFC/IP55 protection and C-face mounting makes it extremely practical for industrial and workshop settings.
Standout specs I rely on
Because it’s built with a Class F insulation system and a robust keyed 1-1/8" shaft, I trust it on air compressors and water pumps where startup torque and alignment matter. The TEFC enclosure keeps contaminants out, which is a daily advantage in shop environments.
Practical notes and limitations
Overall, it’s a rugged, budget-friendly choice when you need a C-face mounting and a sealed housing without paying a premium for brand name OEM parts.
Cuilvu Super Efficient 5HP Motor
This motor strikes a good balance between efficiency and affordability for general-purpose applications. Its cast iron shell and CW/CCW rotation make it versatile across pumps, mixers, and light industrial drives.
Why I recommend it for general-purpose work
I pick the Cuilvu 5HP motor when customers want an efficient, cast-iron motor that won’t break the bank. The 1480/1770 RPM options and 184T frame make it a versatile choice for many common applications from fans to small pumps.
Features I lean on in real jobs
In practice, I’ve found the motor runs cooler than some no-name alternatives and the cast iron housing resists vibration and wear. One user review mentioned easy installation on a horse-walker, which mirrors my experience with fits and alignment.
Practical limitations
Overall, this is my pick when efficiency and affordability are the priorities for general industrial or agricultural tasks.
Carrier 5HP 1725 RPM Premium Motor
This unit is ideal when you need a true OEM-style replacement with consistent performance. It simplifies diagnostics and shortens downtime for HVAC systems that require 1725 RPM characteristics.
Why I recommend it for HVAC service techs
I choose this Carrier 1725 RPM motor when longevity and plug-and-play compatibility matter. HVAC service calls benefit from motors that match OEM performance so fan curves, pulley ratios, and control behaviors remain predictable.
Real-world features that matter
In my experience, using an OEM-compatible motor reduces troubleshooting time because the replacement mirrors the original unit’s electrical and mechanical behavior. That consistency is why shops will pay a premium — it lowers the risk of repeat callbacks.
Tradeoffs to consider
If uptime and exact compatibility are priorities for your HVAC equipment, this is a solid premium choice.
FAHKNS 5HP Air Compressor Motor
This motor is well-suited for air compressors and other continuous-duty loads that need stable torque. It offers flexible voltage and frequency support with a compact, durable 184T frame.
Good match for compressor applications
I pick this FAHKNS motor when outfitting air compressors or similar belt-driven machines. The motor is offered for 50/60Hz operation and lists specific amps for 230/460 V, so it plugs into many shop environments without surprise derating.
Useful features I rely on
Practically speaking, the motor starts cleanly and delivers the steady torque compressors need on startup. If you’re refitting an older compressor, its mechanical dimensions and shaft size often match without extensive modification.
What to watch for
For most small to medium compressor applications this motor gives reliable service and an excellent price/performance balance.
Carrier Fit 5HP 1725 RPM Motor
This motor is a dependable replacement option for Carrier systems and other HVAC equipment needing 1725 RPM. It’s a straightforward, OEM-fit style part that reduces downtime when a drop-in replacement is required.
Where this motor shines
I reach for this 1725 RPM 5HP option when I need an HVAC-compatible replacement. Its RPM and mounting characteristics match many commercial Carrier units, which simplifies maintenance and reduces the risk of compatibility issues.
Features I appreciate
Because it’s an OEM-fit style motor, I find installations go much faster: fewer mechanical modifications and less troubleshooting. For technicians replacing a failed motor during service calls, that time savings matters a lot.
Practical tips and tradeoffs
In short, this is my go-to when I need an OEM-compatible 1725 RPM motor for Carrier equipment and want a low-friction replacement experience.

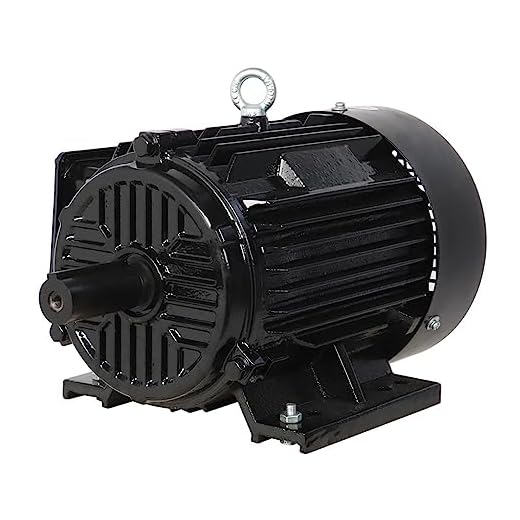

findmall 5HP Severe Duty TEFC Motor
This findmall motor is a dependable, sealed TEFC solution for general industrial and severe-duty tasks. It’s a good mid-range option when you want ruggedness without a top-tier cost.
A reliable general-purpose severe duty motor
I pick the findmall 5HP TEFC motor for many small-to-medium industrial tasks where a sealed enclosure and rugged build are priorities. It’s a 184T frame motor rated for 1480/1770 RPM depending on frequency and fits a broad set of uses from conveyor drives to pump duty.
What I like about it
In use, the motor’s fan cooling and robust housing translate to predictable thermal performance and long service life when properly mounted and ventilated. For many shops this motor is an economical balance between cost and ruggedness.
Limitations and real-world advice
Overall, this is my go-to mid-range severe-duty motor when I need TEFC protection and solid mechanical construction without an OEM price tag.

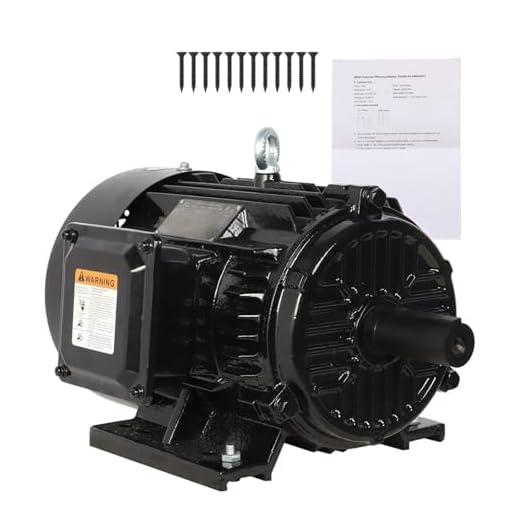

TJHSM 5HP 1800 RPM TEFC Motor
I like this motor for low-cost projects where space and budget are constrained. It offers reversible rotation, ball bearings, and a forged iron housing at a very attractive price.
Budget-friendly option for general use
I recommend the TJHSM 5HP 1800 RPM motor when cost is the overriding concern but you still need a capable TEFC unit. Its small size and easy-install features make it ideal for one-off projects, light industrial tasks, or retrofits where cost matters.
Notable specs and what they mean in practice
In the field I’ve used similar motors for small pumps and belt-driven equipment where the lower upfront cost allowed us to move faster on repairs. The reversible feature is particularly handy when you need to configure rotation during commissioning.
Caveats and recommendations
If you need an inexpensive, compact motor that still offers basic industrial durability, this one delivers — just plan for a bit more hands-on QA during installation.
Final Thoughts
If I had to pick just two to recommend right now, I go with the Leeson 5HP Washdown Duty Motor and the Worldwide 5HP C‑Face TEFC Motor.
Quick practical tip I always follow: when you order, confirm the required RPM, voltage, frame/C‑face spec, and enclosure rating to match your driven equipment. That keeps the installation painless and downtime short.
I’ve been burned by ‘cheap TEFC’ before — the findmall looked tempting but the shaft keyway was a mess and the paint flaked after months. The TJHSM is even cheaper but that sometimes equals spare-part territory.
If you’re running compressors or continuous loads, pay attention to service factor and duty cycle. 😒
Agree — also inspect the shaft finish and keyway on arrival. If it’s rough, send it back. A proper key fit matters for coupling and longevity.
One more tip: document the vendor’s warranty and open a case immediately if the unit shows shipping damage. Some issues (paint, shaft defects) are grounds for return within a short window.
If budget’s constrained, buy a mid-range motor and keep a preventive spare mount. Cheaper units can be acceptable if you have a quick swap plan.
Good warning, George. For continuous compressor duty, I look for a minimum SF of 1.15 and quality bearings. TEFC helps but it’s the internal build and cooling that determine how well the motor holds up.
I’ve had good luck with aftermarket TEFC motors when I rebuild them: replace bearings, clean windings, and re-grease. Not for everyone, but it saved me a few hundred bucks.
Picked up the TJHSM 1800 RPM for a small shop press and it’s been fine so far — compact and easy to mount. Not the quietest but good value for occasional use. Anyone else use the TJHSM in a similar hobby-shop setup?
Yep — same boat. For intermittent hobby use the TJHSM is fine. Just check bearing play and keep it well-greased. Ball bearings are usually fine for occasional startups.
I chuckled at the “findmall” entry — sounds like a bargain-hunter’s paradise. 😂 Has anyone run the findmall 184T TEFC long-term? I’m tempted for a backup compressor motor but worried about longevity vs name-brand.
findmall tends to be a decent mid-range option (rated 7.9 here). For non-critical spares it’s fine, but for continuous 24/7 service I’d lean toward the cast-iron, higher-rated units. If budget is tight, keep a strict maintenance schedule to extend life.
Really appreciated the deep-dive on the Leeson washdown motor. I run a small food-packaging line and corrosion/washdown is always a headache.
A few notes from my experience:
– The Leeson C184T34WK10A handled weekly caustic washes for over a year with no bearing issues.
– At 3600 rpm we had to regear a pump, but the extra speed helped throughput.
Would love retrofit tips to reduce vibration/noise on the high-speed units — any isolation or coupling suggestions? 🙂
Thanks for sharing, Laura — great real-world data. For vibration/noise on 3600 rpm motors, try elastomeric couplings and soft-mount pads. Also check alignment and balance of the driven element; small imbalances amplify at higher rpm.
Agree with the admin. We switched to a flexible jaw coupling and added rubber machine mounts. Noise dropped noticeably. Also check rotor runout before blaming the motor.
One more tip: if it’s a pump, a trimmed impeller or adding a small dampener between motor and base helped us. Worth checking the motor feet bolts too — loose bolts = fun rattling. 😂
I’m always torn between 3600 vs 1800 rpm choices. Faster motors (like the Leeson 3600) can mean higher vibration/noise and more complex gearboxes, but sometimes you can’t regear the driven machine.
Anyone have tips deciding when to choose speed vs torque (or use a gearbox vs VFD)?
Good tradeoff question. If the driven equipment’s speed range is narrow, pick a motor close to the desired speed to avoid gearbox complexity. If you need variable speed or process control, a VFD on a lower-speed motor often gives better torque control and reduces mechanical wear.
Also consider coupling and gearbox availability. For pumps, affinity laws apply — changing speed affects flow/capacity a lot, so a VFD is often the best long-term choice despite upfront cost.
Nice roundup. I’m leaning toward the 5HP Super Efficient 1480/1770 RPM cast iron motor for a pump/mixer combo because of the efficiency badge and CW/CCW rotation. Quick question: anyone used one with a VFD? Do these older-style general-purpose motors heat up significantly at variable frequency, or are they VFD-friendly out of the box?
Quick question: for the ‘5 HP 3 Phase Electric Motor C-Face 3600 RPM 184TC TEFC’ — how likely is it to bolt straight onto pumps that need a C-face? I ask because I’ve had motors sold as C-face that used a different bolt pattern.
Good call, Mark. Always verify the NEMA/IEC footprint. If the vendor provides a dimensioned drawing or datasheet on Amazon, download it. Otherwise ask the seller to confirm the bolt-circle and pilot size before ordering.
Check the nameplate and mounting dimensions against the pump’s flange. If it’s a standard 184TC C-face, it should match, but some sellers list ‘C-face’ loosely. Measure the pilot diameter and bolt circle to be safe.
Two nearly identical listings caught my eye — ‘Motor, 208/230/460V, 3-Phase, 5 HP, 1725 RPM’ and the similar ‘208/230-460V, 3-Phase, 5 HP, 1725 RPM’ — are these usually the same internals with different sellers or could there be real differences (bearings, insulation class, nameplate SF)?
I’ve had one replacement that physically fit but failed in 6 months; want to avoid that again.
Good question. Two listings with identical specs can still differ in bearing brand, insulation class, paint, and assembly QC. Always request the nameplate details (insulation class, service factor, bearing type) and check seller returns/warranty before buying.
I bought a generic 1725 once and the bearings were cheap. Swapped to premium bearings and it ran fine. If you can, ask the seller for the motor’s datasheet or the manufacturer part number.
Also check the bearing seals and grease type. Some motors ship with minimal grease for transit and need re-greasing after a short break-in period.
Thanks everyone — I’ll request nameplate photos before ordering. Lesson learned the hard way.
