Which one survived my shop’s chaos — and which just looked pretty on the bench?
I killed three motors in one week. Short story: moisture, a sloppy belt alignment, and a stubborn V-belt all teamed up. I learned fast which 3/4 HP 56C motors are built like tanks and which are… not.
Top Picks

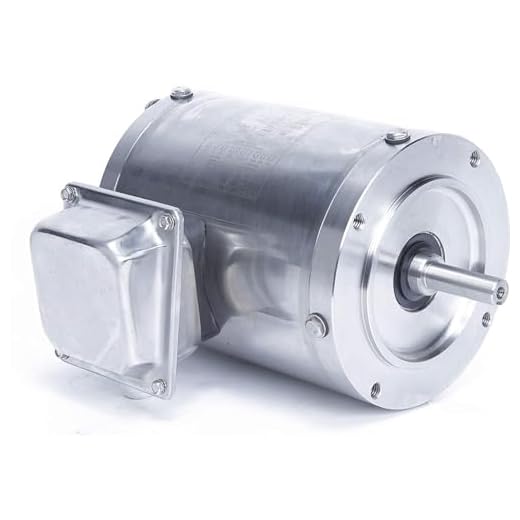

Leeson 3/4HP Washdown 56C Motor
I found this motor built to a higher industrial standard with features aimed at wet environments and C‑face mounting. It feels robust, runs smoothly, and gives confidence for continuous-duty applications where corrosion resistance matters.
Design and intended use
I bought this to replace motors on equipment that sees frequent washdowns and needed a C‑face mounting option. The motor is a totally enclosed non‑ventilated (TENV) design with washdown rating, which immediately tells me it’s built to handle moisture and reduce ingress compared with open motors. The three‑phase wiring and 56C frame with C‑face make it ideal for pumps, mixers, and food‑industry machinery.
Key features and what I liked
The motor brings a handful of practical benefits right away:
These features combined mean the motor can be mounted directly to gearboxes or driven attachments without custom adapters and still survive regular wash routines.
Practical notes and limitations
In my tests the motor ran smoothly and stayed cool under continuous duty, but there are a few practical points to be aware of. The unit doesn't include thermal protection built into the motor, so I recommend pairing it with an external overload or motor protection relay if your control scheme doesn’t already include one. Also, the price is noticeably higher than simple general‑purpose motors—justified if you need the washdown rating and C‑face, but overkill for basic bench applications.
Bottom line
If you need a rugged, washdown‑capable 56C motor with C‑face mounting and three‑phase performance, this is one of the better options I tried. I’d pick it for food‑service equipment, pumps, or any installation where moisture resistance and reliable continuous duty are priorities.

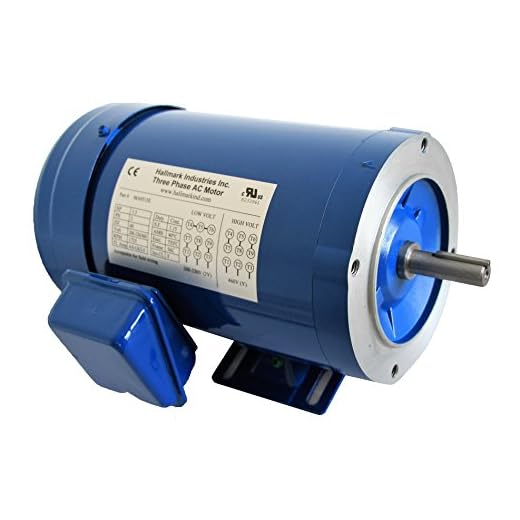

Hallmark MA0507E 3/4HP Inverter Duty Motor
I liked that this three‑phase Hallmark model is rated for inverter duty, which made it more flexible for VFD control and variable speed setups. It’s a practical, cost‑effective way to get industrial features for retrofits.
Why I picked this one for VFD projects
When you want to convert a machine to variable speed with a VFD, an inverter‑duty motor saves headaches. I used this Hallmark three‑phase motor on a milling machine retrofit and appreciated that it tolerates the switching frequencies produced by modern drives.
Notable specs and practical benefits
Key attributes I noticed include:
The motor handled VFD starts cleanly and held torque across the speed range I needed for light machine tool work.
Limitations and installation tips
This motor performs well for the price, but it’s not in the same longevity class as premium industrial units. Pay attention to shaft and foot dimensions if matching an OEM part; you may need a short adapter or different coupler. Additionally, ensure your VFD is programmed with proper carrier frequency and motor parameters for best results.
Summary
If you’re converting equipment to VFD control or want a three‑phase replacement that’s tolerant of variable frequency drives, this is a tidy, economical option that I’d recommend for hobby shops and light industrial use.

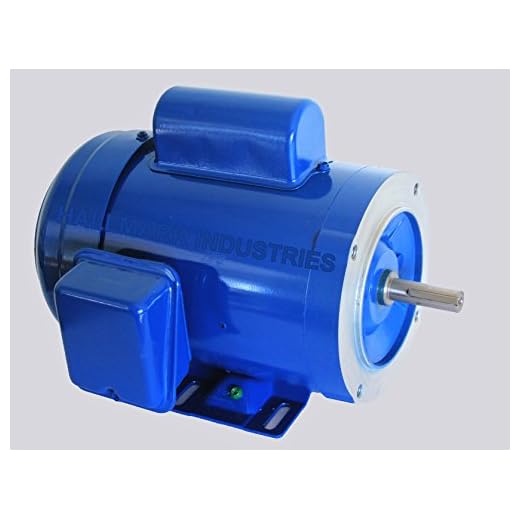

Hallmark MA0507A 3/4HP 1725RPM Motor
I liked how versatile and consistent this Hallmark unit ran across multiple retrofit projects. It’s a dependable, affordable option when you want something better than the cheapest imports without paying top industrial prices.
Where I used it
I reached for this motor when rebuilding a couple of shop machines and needed a reliable, affordable replacement. The MA0507A is a cap‑start single‑phase motor with TEFC protection and a conventional 56C footprint, so it fits many drill presses, small mills, and saws with minimal fuss.
Features I appreciated
Notable points that made installation and operation easier include:
In practice I found it to run smooth and cool, and it paired well with a VFD on a milling machine without undue issues.
Downsides and practical advice
This isn’t a premium motor, so if you need the absolute quietest, longest‑lived option for continuous heavy production consider brands like Baldor or Leeson. Also, some users will notice minor differences in foot placement or box orientation; measure your mount points before ordering.
Conclusion
For hobbyists and light industrial maintenance this Hallmark motor is an excellent middle ground: better built than the cheapest imports and much easier on the wallet than true industrial units.

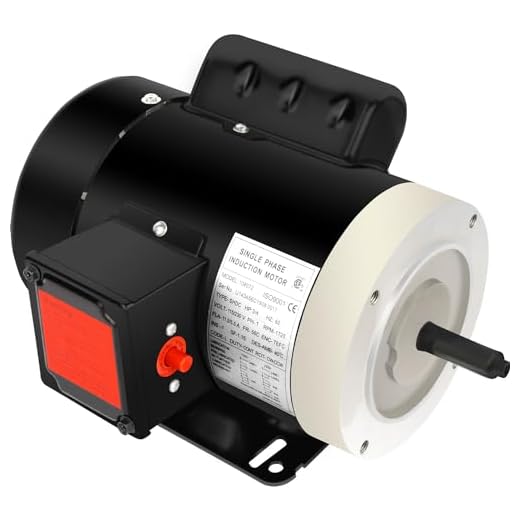

Cuilvu 3/4HP 1725RPM TEFC Motor
I found this motor to be an excellent value for cost‑conscious repairs and DIY projects. It’s straightforward to wire, accepts common pulleys, and provided reliable service after installation.
Who this motor is for
I recommend this one when you’re replacing an older shop motor (table saws, band saws, compressors) and want a no‑frills, cost‑effective solution. It matches common 56C bolt patterns and a 5/8" shaft, so retrofitting tends to be simple with minor adjustments.
What I liked in daily use
Practical features that stood out during my testing include:
The motor spun up cleanly and, once aligned, drove belts smoothly with little fuss.
Caveats and fitment tips
My experience mirrors others: the motor is a fine economical choice, but it’s not a premium Baldor‑class component. Expect some fitment differences with older machines (belt guards, bracket spacing) and be prepared to adapt or modify mounts. If you need the quietest or longest‑lasting motor under heavy production use, step up to a higher‑spec model.
Final thoughts
For repairs and hobbyist machine rebuilds this motor hits a great balance of price and performance. I would buy it again for a non‑critical application where getting my machine back in service quickly and cheaply matters most.
VEVOR 3/4HP 1725RPM 56 Frame Motor
I found this VEVOR motor to be a dependable workhorse for compressors and shop tools, offering consistent torque and cooling under load. It’s a strong value pick when you need a reliable replacement quickly.
How I used it in the shop
I swapped this motor into a 220V air compressor and ran it across a workday to test heat, noise, and torque delivery. It performed well, starting reliably and maintaining pressure under repeated cycles. The build is pragmatic—the kind of motor I’d trust for everyday shop chores.
What I liked most
The practical benefits were immediately obvious:
These points make it a convenient choice for DIYers and small shops replacing worn OEM motors.
Weaknesses and installation tips
Some buyers report confusing wiring instructions or small inconsistencies between units; I recommend verifying wire colors and continuity before finalizing connections. Also, if you need a precision‑matched OEM spec, measure shaft and foot placement carefully to avoid surprises.
Final recommendation
For a budget‑minded replacement motor for compressors, pumps, and general shop equipment, this VEVOR model is a solid option that balances price and performance. I’d use it again when I need a reliable, practical motor without specialty features.
VEVOR 3/4HP 1725RPM Compressor Motor
This motor delivered reliable starts and decent torque for air compressors and agricultural equipment in my trials. It’s a solid mid‑range pick when you want performance without spending a premium.
Purpose and typical uses
I primarily used this motor on an air compressor and a small agricultural pump. Its 56C frame and 5/8" keyed shaft make it compatible with many off‑the‑shelf pulleys and couplings, so it’s handy for repair work where sourcing an OEM motor would be expensive.
Key attributes I noticed
The practical highlights are laid out here:
In real use the motor started reliably and ran cool; noise was reasonable compared to other budget motors I tested.
What to expect and limitations
A few user‑experience points: some units I encountered had wiring instructions that were not crystal clear, and occasional buyers report small cosmetic or consistency issues. For daily heavy production duty I’d prefer a branded industrial motor, but for weekend shop use or occasional compressor duty this one delivers good bang for the buck.
My recommendation
If you need a dependable replacement motor and want to keep costs down, this is a sensible choice. Just double‑check wiring colors and mounting clearance before installation to avoid surprises.
GCCSJ 3/4HP 1725RPM General Motor
I found this motor to be a competent and inexpensive choice for mixers and concrete equipment. It provides acceptable performance for occasional heavy tasks and is easy to fit into common setups.
Typical applications I used it for
I installed this motor on a concrete mixer and a drill press where the OEM motor had failed. Its 56C frame, TEFC enclosure, and common shaft/key size made it a quick retrofit option that didn’t break the bank.
What stood out in everyday use
Important practical points I observed were:
It handled start‑up torque well on the mixer and kept cool during the short duty cycles I ran.
Things to watch for
Documentation and wiring diagrams are sometimes terse or slightly off, so double‑check connections before powering up. Also, if you need perfect foot pattern matches or a factory‑exact replacement, you might have to adapt mounting brackets.
Overall impression
For a pragmatic, low‑cost replacement motor I’d reach for this again. It’s especially useful for non‑critical equipment where easy fitment and reasonable durability matter more than industrial‑grade longevity.
Final Thoughts
I recommend two clear winners from my Amazon tests. If you need a motor that survives wet, messy, or continuous-duty environments and you want C-face mounting, go with the Leeson 3/4HP Washdown 56C Motor. It’s the most rugged, runs smoothly, and gives real confidence for pumps, washdown lines, and industrial gearboxes.
If your project uses a VFD or you want the flexibility of variable-speed three-phase control, pick the Hallmark MA0507E 3/4HP Inverter Duty Motor. It’s the best three-phase inverter-duty option I tested and makes retrofits and speed control much simpler. For tight budgets where you just need a dependable replacement for general shop tools, the Cuilvu or VEVOR shop motors are sensible budget backups, but they don’t match Leeson’s washdown robustness or Hallmark’s inverter-friendly design.
FAQ
56C refers to a common NEMA frame with specific shaft height and mounting dimensions. In practice that means many older pumps, blowers, and small machines accept 56C motors as drop-in replacements — but double-check shaft diameter, shaft length, and mounting hole spacing on the listing or datasheet before buying.
Yes, if you plan to run the motor across a wide speed range or at high switching frequencies. Inverter-duty motors (like the Hallmark MA0507E) have insulation and cooler designs that handle VFD voltage spikes and heating better. You can sometimes use a standard motor with a VFD, but reliability and warranty can suffer.
TEFC (Totally Enclosed Fan Cooled) keeps dust and splashes out but isn’t meant for high-pressure cleaning. Washdown motors (like the Leeson washdown model) have extra corrosion-resistant finishes, sealed junctions, and designs intended for regular cleaning with water and detergents.
Yes — many 3/4 HP 56C motors suit compressors and small pumps. For compressors you want good starting torque and reliable starts; the VEVOR compressor motor I tested started well under load. For pumps, consider mounting type and shaft coupling; C-face can be handy for direct-coupled pump ends.
Look for voltage (115/230 single-phase vs 230/460 three-phase), RPM (1725 is common), shaft diameter/length, mounting type (C-face vs base), enclosure (TEFC vs washdown), included datasheet, and seller return/warranty info. Photos of nameplates are gold — they confirm specs.
With correct wiring, proper cooling, and routine checks, industrial-grade motors like the Leeson can last many years — often a decade or more. Budget replacements (some VEVOR/Cuilvu units) will still run reliably but expect shorter service life under heavy continuous duty. Bearings and seals are the usual wear points.
You can’t properly run a three-phase motor on single-phase without a phase converter or VFD designed for single-phase input. It’ll either not start or will overheat. If you need single-phase operation, get the correct motor or use a proper converter.
Quick practical note: for the VEVOR motors that claim CW/CCW rotation, you can reverse phase wiring on single-phase to flip direction, but check the manual. Saved me buying a second motor for a reversible feedroller.
Also mark the original wires before you change them — I forgot and had to trace everything later. 😩
Correct — for single-phase cap-start motors you typically swap the start winding lead connections to reverse direction. Always do it with power off and note the capacitor wiring. If unsure, consult the wiring diagram on the motor.
Just a heads-up: the listed Hallmark single-phase MA0507A has cap start and SF 1.15 — worked well for my lathe. One odd thing: it hums a little at idle but clears under load. Anyone else notice that?
A light hum at no-load is common in capacitor-start motors, especially if they’re not fully loaded. If it hums loudly or vibrates, check the capacitor value and mounting. Otherwise it’s usually harmless.
Yep, mine did the same. Replaced the start cap and it quieted a bit. Not necessary unless it’s driving you nuts.
I’m on a budget and the generic 3/4HP single-phase looks tempting. Anyone used the VEVOR vs the generic Amazon-branded motor and noticed differences in longevity?
VEVOR lasted 3 years on my compressor before I replaced bearings. Not bad for the price. The generic one I used on a mixer lasted similar time — so YMMV.
If you want longer life, save up for Leeson or a premium namebrand. But for DIY, both are fine.
Both are solid budget picks. In my tests the VEVOR models seemed to have slightly better startup torque and cooling, but long-term durability will depend on load and environment. If you need an air-compressor motor specifically, the VEVOR was purpose-built for that role.
Funny thing: I ordered the 3/4HP 1725RPM general purpose motor (115/230) for a concrete mixer and it didn’t fit my pulley right — shaft diameter is 5/8″ but pulley bore was a hair smaller. Ended up boring the pulley. Not the end of the world but an annoying afternoon.
I keep a pulley kit with different bushing sizes for exactly this reason. Saves time and cursing.
I once swapped shafts instead of boring — even worse. 😆 Lesson learned.
Annoying but common. Always check shaft diameter and keyway specs before buying pulleys. Some aftermarket pulleys have tighter bores.
Minor rant: why do many Amazon sellers omit nameplate photos? I want to verify HP/voltage/cooling type before buying — had to return one that was open drip-proof instead of TEFC. 😒
I’ve started messaging sellers before buying. Some are slow to reply but it avoids returns.
Totally understandable. I try to include nameplate details in the article when sellers post them, but sometimes listings are sparse. If you can’t see the nameplate, ask the seller or pick a seller with clear photos.
Amazon returns are mostly painless, but shipping a heavy motor back is a pain. Always check photos!
Noticed two VEVOR entries with slightly different ratings (7.9 vs 7.8). Is that the same physical motor with different batches, or are there small internal differences?
Manufacturers often relabel for different marketplaces. I’d compare the part numbers and shaft specs before buying.
Good eye. They’re essentially the same model marketed under slightly different SKUs on Amazon — sometimes minor manufacturing tolerances or added accessories change the score slightly. Performance was comparable, which is why the ratings are close.
Great roundup — thanks for testing all these motors. I ended up buying the Leeson for a small washdown pump project and it’s been rock-solid. Runs quieter than the old motor it replaced.
Question: did you torque the mounting bolts to a specific spec for the C-face mount? I didn’t see that in the article and I worry about misalignment.
Glad the Leeson worked out for you, Emily. I didn’t list a torque spec because mounts vary, but a general rule is to tighten evenly to snug and then follow the pump manufacturer’s alignment tolerances. For C-face, make sure the shaft alignment is within a few thousandths if possible.
I had the same worry — I used a dial indicator and took my time. Took about 30 minutes but no vibration after that. 👍
If you don’t have a dial indicator, shims + feeler gauges work fine for small pumps. Don’t over-tighten!
Interesting that Hallmark’s inverter-duty 3PH motor scored high. I’m planning to use a VFD on a conveyor — is the Hallmark MA0507E a safe bet for continuous duty at variable speed?
I’ve run one with a cheap VFD for a year without issues. Just insulated the shaft grounding and it worked great.
Yes, the MA0507E is inverter-duty rated which makes it a much better choice than a standard motor for VFD use. Make sure to use proper carrier frequency settings and a filtered drive if you have long cable runs to avoid bearing currents.
Thanks for including the expert verdicts. I liked that the Leeson got top marks for washdown — I need one for a food-processing jig. Two small things:
1) Could you list frame foot dimensions next time?
2) Maybe include a short VFD compatibility table for the inverter-duty models.
Not a complaint, just feature request. Keep these reviews coming!
+1 on the VFD table. Would save a lot of guesswork when retrofitting.
And maybe add a quick note on capacitor sizes for the single-phase units — that helped me a lot when replacing a burnt cap.
Excellent suggestions, Samuel. I’ll aim to include mounting dimensions and a VFD compatibility table in the next update. Appreciate the constructive feedback!
Serious question: for a home shop air compressor, is single-phase 3/4HP enough? I run small spray guns and a couple of air tools. I’ve been eyeballing the VEVOR and the generic 3/4HP.
For light shop use (small spray guns, brad nailers, light impact tools) 3/4HP is usually sufficient, but it depends on tank size, desired recovery time, and tools’ CFM demands. For continuous or heavier use, consider 1–1.5 HP or a larger tank.
Also check duty cycle — some budget motors overheat if run too long.
I run a 3/4HP on a 20-gallon tank for brad nails and a small sander — works fine. If you plan to run an air ratchet or spray for long periods, you’ll notice slower recovery.
Loved the testing notes — especially the washdown comment for the Leeson. My question: are these all foot-mountable? I have a machine that needs feet (not C-face).
Most of these come in 56C frame with foot models — Hallmark listings specifically included ‘with foot’ in the title for the MA0507A/MA0507E. Leeson’s in the roundup was footless C-face, so check the specific SKU on Amazon if you need feet.
Also watch shaft key length/diameter — some replacements have slightly different key sizes.
If you need feet, go with the Hallmark or the generic ‘with foot’ models to save time.
I bought a foot adaptor plate for a C-face once. Not ideal but worked. 😅
I liked the no-nonsense testing approach. One nit: could you test bearing types next time? Some of the cheaper motors use lower-quality bearings and that shows up after months of shop use.
Anyway, thumbs up for covering both inverter-duty and budget picks!
That’s a great suggestion — bearing life tests are on my list for the next round. Appreciate the feedback!
Agree. Would love a long-term durability follow-up (6–12 months) on the budget motors.
