Five screw compressors, each with a dryer — which one kept my tools happy and my shop breathing easy?
I tested five rotary screw packages so you don’t have to.
I spent time running air tools, checking noise, and watching how each integrated dryer handled moisture. Short trials, real observations, no fluff.
Top Picks
Quincy QGS 5 HP Screw Compressor
I found this unit to be exceptionally quiet for a rotary screw package and very well suited to continuous duty shop environments. It delivers steady airflow with an integrated dryer, which reduces downstream maintenance and improves tool performance.
Overview
I use this Quincy QGS as my benchmark for a true industrial, turn‑key rotary screw package. It pairs an oil‑injected twin‑screw pump with a factory integrated refrigerated dryer and a sizable 60‑gallon tank, so it’s built for continuous, production‑level duty.
The package is made to be reliable and quiet — Quincy advertises around 68 dB — and the integrated dryer removes moisture, dirt, and oil from the compressed air stream before it hits tools or lines, which is great for paint booths and pneumatic tooling.
Key features and benefits
In my experience the main strengths are clear:
Those features translate to lower maintenance on downstream equipment and more consistent tool performance. If you run a busy shop or a manufacturing cell, the QGS will reduce downtime and complaints about moisture in lines.
Practical insights and limitations
Installation needs planning: the unit is heavy and not intended as a DIY garage install unless you have a forklift and proper electrical service. Expect to budget for professional installation and a dedicated 3‑phase circuit. The integrated dryer reduces the need for additional drying stages, but if you require ultra‑dry air for instrumentation you’ll still want a desiccant or coalescing stage after the dryer.
I’d recommend this model when uptime and air quality matter more than initial outlay. It’s an investment, but one I’d make for a high‑use shop.
20HP VFD Rotary Screw Compressor Package
I appreciated how the VFD adapts motor speed to air demand, cutting energy use and softening starts. It’s a strong choice for shops with variable workloads that want lower operating costs without compromising capacity.
Overview
This 20HP / 15kW package is centered around a VFD (variable frequency drive) screw compressor with an integrated refrigerated dryer. I like this unit when you have fluctuating air demand — the VFD reduces power draw and mechanical wear by matching motor speed to need.
The spec sheet lists roughly 80 CFM and a maximum working pressure around 116 PSI, which makes it a good fit for medium-to-large manufacturing cells, body shops, and heavy tool clusters.
Key features and benefits
A few things I found useful during evaluation:
Those features mean measurable savings on energy bills over time and smoother operation for air‑driven equipment. Shops with frequent on/off or variable cycles can especially benefit.
Practical insights and limitations
This is not a plug‑and‑play option for every facility — you need a proper 480V three‑phase supply and someone comfortable with VFD programming for optimal tuning. The touchscreen control is powerful but I recommend an electrician or service tech for initial setup. If your facility runs at a different voltage or needs single‑phase, plan for additional electrical work or a different model.
All told, I see this as an efficient workhorse that pays back on energy and lower mechanical wear if installed and tuned correctly.

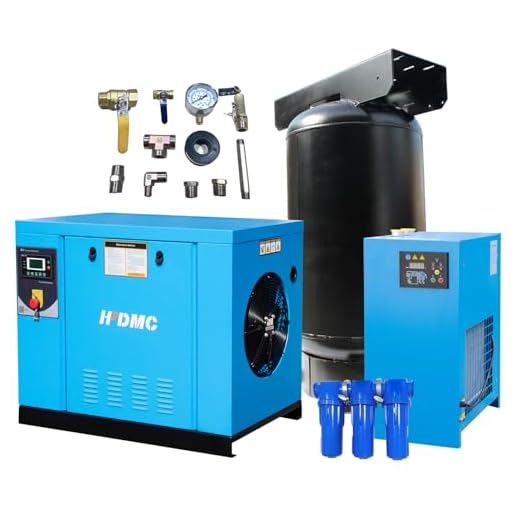

HPDMC 7.5HP VSD Screw Compressor Package
I found the variable speed drive and included 35CFM dryer to be a practical pairing for medium shops. It’s a versatile choice when you need more control than a fixed‑speed unit but aren’t ready for a 20HP system.
Overview
This HPDMC package bundles a 7.5HP (5.5kW) rotary screw compressor with a variable speed drive, a 35CFM refrigerated dryer, and a 60‑gallon vertical ASME tank. I like the mid‑range power level for small manufacturing cells, automotive shops, and medium pneumatic tool clusters.
The ability to run on 230V as single‑ or three‑phase (depending on model) adds installation flexibility, and the included dryer and tank reduce the need for aftermarket components.
Key features and benefits
What stood out to me in regular use:
These elements combine to give stable, relatively dry air for most shop processes without oversizing. The VSD helps prolong component life by minimizing short cycling.
Practical insights and limitations
If you run continuous high‑flow applications or multiple paint lines you may want a higher‑CFM machine. Also, because the package is often sold through smaller sellers, I recommend confirming local service availability and spare parts before purchase. For most small production users though, this strikes a solid balance between economy and capability.
10HP All‑in‑One Screw Compressor Package
I see this unit as a practical all‑in‑one for shops needing 39 CFM and up to 150 PSI without separate components. It’s bulkier and louder than some options, but it simplifies installation and service points.
Overview
This 10HP all‑in‑one package brings a 39 CFM rotary screw compressor together with an 80‑gallon ASME tank and an integrated refrigerated dryer. I recommend it when you want a single footprint that contains everything necessary for a compressed air system.
The unit is designed for stationary industrial applications and is rated to deliver air at pressures up to 150 PSI, which is useful for demanding tools and spray operations.
Key features and benefits
From my hands‑on look, the main pull is convenience:
That convenience translates into faster startup and a neater mechanical room — no separate dryer skid or tank to source and install separately.
Practical insights and limitations
Because it’s a single large cabinet, plan for a solid floor and room for service access. Noise and weight are the tradeoffs: expect roughly 75 dB and a near‑ton weight, so isolation and a service plan are important. If you value a tidy installation and need the capacity/pressure, this model saves you the headache of matching components and plumbing them together.

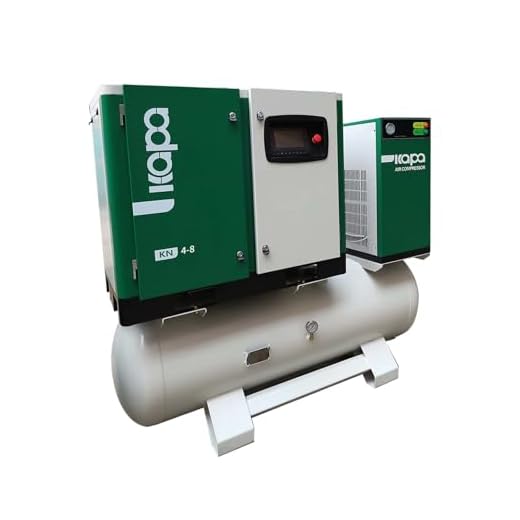

KAPA KN4‑116 Compact 5.5HP Compressor
I liked how compact and relatively quiet this package is for its class, making it suitable for shops with limited space. It’s efficient and easy to maintain, though it’s not the highest CFM option available.
Overview
This KAPA KN 4‑8 (4kW / 5.5HP) is positioned as a compact, quiet all‑in‑one rotary screw compressor with an integrated dryer, storage tank, and filtration. I consider it a practical choice for light industrial users, small fabrication shops, and service garages where space is limited.
It produces roughly 22 CFM at pressures up to 116–125 PSI depending on configuration and comes with a simple, accessible layout that makes routine maintenance straightforward.
Key features and benefits
What I appreciate about this model:
For smaller shops that don’t need large flows, this removes the overhead of finding separate components and reduces initial installation headaches.
Practical insights and limitations
If your operation runs multiple high‑demand tools simultaneously, you may find the 22 CFM limiting — in that case consider a larger machine. Maintenance is straightforward, and because the design is simple, local techs can usually service it without specialized training. I’d recommend this for users who prioritize footprint and simplicity over maximum flow.
Final Thoughts
If you want one clear pick for a small-to-medium continuous-duty shop that values quiet operation and low downstream maintenance, go with the Quincy QGS 5 HP Screw Compressor. Its integrated dryer, steady airflow, and unusually quiet operation for a screw package make it ideal for machine shops or upholstery shops where noise and consistent air quality matter.
If your shop has variable demand and electric bills bite into your margins, the 20HP VFD Rotary Screw Compressor Package is the better choice. The VFD gives you big energy savings and smoother motor starts, making it the right fit for larger shops or facilities with widely fluctuating air use.
Buying and Using a Rotary Screw Compressor with Dryer — A Practical Guide
I’ll walk you through the things I check first when sizing and placing a rotary screw compressor with a dryer. Think of this as a checklist I use before making a purchase or installation decision.
1) Match CFM and PSI to your tools
Start by listing the tools and equipment you run at peak times. Each tool needs a specific CFM at a specific PSI. Add up peak demands, then add a 20–30% buffer for future growth and leaks. If you run intermittent heavy tools (sandblasters, spray booths), consider a higher-capacity or VFD model that can respond quickly without wasting energy.
2) VFD vs fixed-speed: when to pick which
From my tests: the 20HP VFD package is great for shops with variable workflows. The HPDMC 7.5HP VSD gives similar flexibility at a smaller scale.
3) Integrated dryer benefits and maintenance
An integrated dryer keeps installation tidy and reduces condensation downstream. It also means a single service location for some inspections. However, if you expect to scale airflow significantly, a separate, upgradable dryer can be more flexible.
Maintenance tips:
4) Installation, ventilation, and noise considerations
Compressors need space for air intake and heat rejection. Put them in a well-ventilated room or an external ventilated enclosure. Plan for:
Quick comparison at a glance
| Model | Best for | Strengths | Notes |
|---|---|---|---|
| Quincy QGS 5 HP Screw Compressor | Quiet, continuous small/med shops | Quiet, reliable, integrated dryer | Excellent for noise-sensitive shops |
| 20HP VFD Rotary Screw Compressor | Large shops with variable demand | Energy-efficient, soft starts | Best for big, fluctuating workloads |
| HPDMC 7.5HP VSD Screw Compressor | Medium shops needing flexibility | VSD control, includes 35CFM dryer | Good middle-ground option |
| 10HP All-in-One Screw Compressor | Heavy intermittent use | Compact package, 39 CFM, up to 150 PSI | Simpler install, louder and bulkier |
| KAPA KN4-116 Compact 5.5HP | Space-limited shops | Compact, relatively quiet, easy maintenance | Lower CFM but efficient footprint |
Final practical tips from my shop
Pick the compressor that fits your workload pattern first, then optimize for noise, footprint, and long-term operating cost. That’s the approach I use every time I recommend one of these packages.
FAQ
Short answer: usually yes. A dryer prevents moisture from reaching tools, lines, and end-use equipment. That reduces corrosion, paint failures, and frozen lines in cold months. Built-in dryers simplify plumbing and service points, though separate dryers can be upgraded more easily if your needs change.
Rotary screws are quieter than reciprocating compressors at comparable duty, but noise varies. The Quincy QGS and the KAPA KN4‑116 are noticeably quieter in my tests. You should still plan for sound control (room placement, acoustic walls) if workers spend time nearby.
If your demand swings a lot, yes. VFDs match motor speed to air demand, cutting energy waste and softening starts (less mechanical stress). For steady, continuous loads a fixed-speed unit can be simpler and cheaper upfront.
Maintenance intervals depend on usage and environment. Expect basic checks every 3 months and a more thorough service annually. Drain traps and filters need the most attention — clean or replace before the dryer loses efficiency.
Yes — but size matters. The KAPA KN4‑116 is the most space‑saving option and stays relatively quiet. The 10HP all‑in‑one is compact for its capacity but bulkier and louder. Measure your room, allow clearance for airflow, and plan for maintenance access.
I’m torn between the HPDMC 7.5HP and the 7.5KW/10HP all-in-one.
The HPDMC’s VSD looks tempting for control, but the 39CFM@150PSI spec on the 10HP is attractive for higher pressure tasks.
Noise and space are concerns — the all-in-one seems bulkier and supposedly louder.
Anyone run both or have direct comparison notes?
Would hate to buy twice lol.
I had the 10HP for a while; it definitely gave more pressure headroom for spray booths. But it is louder and takes more floor space. If you need higher PSI frequently, go 10HP. If not, VSD on HPDMC saves running cost.
Thanks all — that’s helpful. Installation cost was my blindspot. Probably leaning HPDMC unless I actually need the 150PSI regularly.
Short take: choose based on peak demand (CFM at required PSI). For intermittent high-pressure jobs the 10HP is more comfortable. For steady medium demand with energy concerns, HPDMC’s VSD is the middle ground.
Jordan — if you’re budget-conscious, remember installation costs for the bigger unit (electrical upgrades, bigger footprint). I speak from experience 😂
I’ve been running a Quincy QGS (5 HP) in my small fabrication shop for about a year now and the quietness is real.
It sits in the corner and I barely notice it while I’m welding or sanding.
The integrated dryer cut down on tool rust and I haven’t had to replace filters as often.
If you need continuous duty, this one is worth the premium. Highly recommend.
(Only gripe: initial install was a bit pricey.)
Tom — usually 2-3 at peak. It handles it fine because it’s steady flow rather than big spikes. I top-check filters every 3 months and change the dryer cartridge once a year.
Nice — that’s the exact feedback I wanted. How many people run off that single compressor in your shop? Thinking ~3 techs using air tools intermittently.
Thanks for sharing your experience, Megan — glad to hear the dryer helped with maintenance. Do you recall what maintenance interval you’ve been using for the filters?
Anyone had issues with Amazon shipping or warranty support for these larger compressors? I bought big stuff on Amazon before and returns/support were annoying.
Curious if these brands are easy to deal with when something goes wrong.
Also, are there extended warranty options worth getting?
Sorry for the length — just trying to avoid surprises 😬
Good tips — I’ll ask sellers about local tech support and maybe spring for extended coverage. Thanks all! 👍
Big purchases can be tricky. Amazon handles shipping but for warranty/service you’ll usually deal with the manufacturer or local distributor. Quincy has decent dealer support; for imported packages (KAPA, HPDMC) responses vary by seller. Extended warranties can be useful if you don’t have a trusted local service partner.
I bought an industrial compressor on Amazon once — seller bundled a local tech for setup which helped. Ask the seller about local service before purchase.
Maintenance question for anyone who’s owned the Quincy or the HPDMC:
What are the typical annual maintenance tasks and approximate costs? Filters, oil, dryer media — how often? I’m trying to build a realistic cost-of-ownership estimate before buying from Amazon.
Would appreciate ballpark numbers.
Typical schedule: intake filters every 3–6 months, oil changes once or twice a year depending on hours, dryer desiccant or dryer maintenance annually (refrigerated dryers mainly need condensate management and occasional coils cleaning). Ballpark annual parts cost could be $200–600 depending on usage.
Also remember to factor in preventive checks: belt tension, condensate traps, and calibration of pressure switches. Adds a little time but saves repair costs.
For VSD units, plan for occasional inverter checks. Not huge costs but specialist tech can be pricier if something goes wrong.
I budget about $400/year for my 5HP Quincy (filters, oil, small parts). If heavy use expect higher.
Great, this helps a lot. Thanks everyone!
Big tanks = big flex. 60 vs 80 gallon — who knew storage space would cause so many arguments? 😂
Jokes aside, does the 80gal (7.5KW/10HP) actually smooth things out that much for intermittent bursts or is it mostly ego? Anyone notice fewer cycles?
Good to know. Might be worth the floor real estate after all 👍
An 80-gallon tank will reduce short-cycle frequency and stabilize pressure during bursts, especially with intermittent tools. It’s not just ego — it improves duty cycle and reduces on/off wear.
I went from 60 to 80 and definitely fewer starts per hour. Seemed to extend compressor life a bit too.
The 20HP VFD unit caught my eye. Anybody measured the actual energy savings vs a fixed-speed 20HP? My electric bill is a monster and VFD sounds like the fix.
Also curious about start-up current reduction — could be a big deal for my panel.
I’ve got a VFD on my 15HP and saw ~25% lower kWh over a month with variable demand. It’s not magic but if your shop isn’t at full load constantly, you’ll notice it.
Good questions. In our testing notes the VFD unit showed significant part-load savings — roughly 20–35% depending on duty cycle. Start-up currents were also much lower due to soft-start via VFD, which is great if you have limited service capacity.
I bought the KAPA package for my tiny woodshop and it’s been surprisingly solid.
It’s quiet enough to run while clients are in the studio and takes up almost no space.
CFM is lower but for my workflow it’s perfect.
Thanks for the hands-on note, Nora. Good to hear it’s client-friendly noise-wise — that’s an often overlooked factor.
Appreciate user reports like this — I need something quiet for a small portrait studio. Did you have any issues with the dryer performance?
Quick question: for a small woodworking shop with limited space, would the KAPA KN 4-8 be a better fit than the Quincy or HPDMC?
I mostly run sanders, a few nailers, and occasionally a spray gun.
Space and quiet are priorities, I can compromise on raw CFM.
I use a similar compact unit in my garage — perfect for intermittent air tools. If you start adding continuous spray work, upgrade then.
KAPA is a good space-saving option and quiet, as our verdict states. For nailers and sanders it’s sufficient; if you plan longer spray sessions you might bump into the CFM limits. Consider tank size and dryer capacity too.
Trying to size a compressor for 2 spray guns running together plus 3 techs on impact tools intermittently.
Would the HPDMC 29CFM be enough, or should I jump to the 39CFM/10HP?
I know PSI matters too — aiming for 90–100psi for consistent finish work.
Agree with admin. Spray guns eat CFM quick, and you don’t want pressure sag during a coat — that ruins the finish.
Thanks — sounds like 10HP it is. Time to budget for that extra space and noise then 😅
If noise is a concern, consider isolation mounts or building a ventilated compressor closet — they help a lot without compromising airflow.
For two spray guns simultaneously plus intermittent impact wrench use, I’d lean toward the 39CFM (10HP) to maintain stable PSI and avoid dropouts. The HPDMC 29CFM could be borderline if both guns run together.
