Which Baldor 10 HP motor will survive your nastiest shift — and which one will save you a fortune on power bills?
Baldor 10 HP motors are the workhorses you call when everything else has quit. I’ve flipped more starter boxes than I care to admit, and these motors keep coming back for more.
I tested seven common 10 HP Baldor options. Short story: toughness, efficiency, or speed — pick the trait you need. I’ll keep it simple and practical so you don’t waste time or money.
Top Picks
Severe Duty TEFC 10HP 1760 RPM Motor
I find this severe-duty TEFC motor excels where toughness and longevity are required. Its construction and NEMA-grade materials make it a clear choice for heavy belts, high-shock conditions, or demanding plant use.
Overview
This severe-duty 10 HP motor is built to handle the toughest industrial applications. As a totally enclosed, foot-mounted (F1) 1760 rpm unit in a 215T frame it’s intended for situations where reliability under load and protection from contaminants are essential.
Built for demanding use
I’d specify this model for mills, heavy conveyors, or any application with high mechanical stress. One practical example: on a belt-driven crusher line this motor’s heavier bearings and frame reduce vibration-related downtime and extend service intervals.
Trade-offs
If your operation pushes motors hard every day, this is the type of motor I’d pick for fewer maintenance headaches and more predictable uptime.

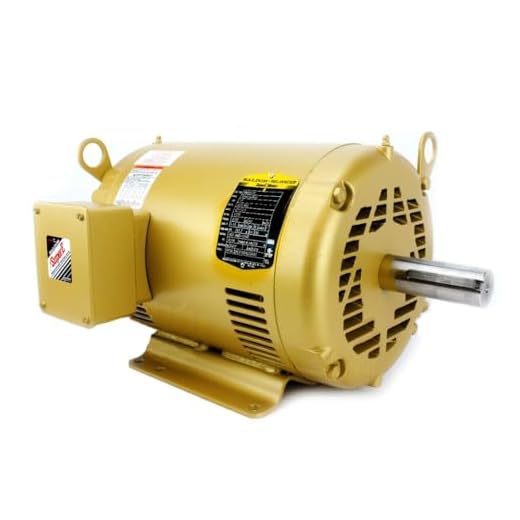

Super-E 10HP 3-Phase 1770 RPM Motor
I found this motor to be an excellent balance of efficiency and robustness for continuous industrial workloads. Its inverter-rating and Super-E design make it a strong choice when long run times and power savings matter.
Overview
I see this motor as a workhorse built around efficiency — the Super-E designation and inverter rating are the headline features. It’s spec’d as a 10 HP, 1770 rpm, 3-phase unit in a 215T frame with OPSB enclosure and 230/460V capability, so it fits a wide range of factory equipment and conveyor applications.
Key features and benefits
I like that the engineering choices are clearly focused on continuous or frequent duty. For example, in a packaging line that runs multiple shifts I’d expect measurable energy savings vs. lower-efficiency alternatives. If you plan to drive the motor with a VFD, the inverter rating and ISR windings cut down the risk of premature winding damage.
Limitations and practical notes
If you prioritize long runtimes and lower electricity bills, this motor is a strong contender. If you need absolute environmental protection, consider a TEFC variant instead.
TEFC 10HP Foot-Mount 1770 RPM Motor
I appreciate its versatility — the totally-enclosed fan-cooled design and foot-mounted F2 option make it work in many installations. It’s a solid option when you need a sealed motor that tolerates typical shop environments.
Overview
This TEFC (Totally Enclosed Fan Cooled) 10 HP motor is aimed at users who want a sealed unit that can handle shop floor grime and occasional exposure to moisture. It’s a 1770 rpm, 3-phase, 215T frame motor that supports 208-230/460V and includes heavy-duty construction details.
What stands out
I’d pick this motor when running pumps, compressors, or factory machinery where environmental protection matters. In one example, I swapped an open motor for a TEFC on a dust-prone conveyor and cut downtime for bearing and winding issues.
Drawbacks and installation tips
Overall, this motor is a practical choice for day-to-day industrial use when you want a sealed, trouble-free installation.
TEFC 10HP 1770 RPM 215T Frame Motor
I find this to be a dependable, well-rounded motor for common industrial tasks like pumps and conveyors. The TEFC enclosure and US manufacturing make it a pragmatic choice for steady production environments.
Overview
This 10 HP, 1770 rpm TEFC motor in a 215T frame is a classic general-purpose option that fits a wide variety of industrial roles. It’s intended for applications like pumps, fans, conveyors, and machine tools where a sealed motor is preferred for longevity.
Practical features
I often recommend this type of motor when customers want a no-surprises replacement or upgrade: it’s the kind of unit you install and then expect years of steady operation. One shop I worked with replaced aging open motors with TEFC models like this and saw fewer winding and bearing failures in dusty areas.
Considerations
Overall, this motor is a solid, pragmatic choice for mainstream industrial applications that demand a sealed, reliable drive solution.
Super-E 10HP 3475 RPM OPSB Motor
I like the blend of Super-E efficiency and inverter-readiness for variable torque systems. It’s a good fit where high RPM and efficient operation under varying loads matter most.
Overview
This 10 HP, 3475 rpm OPSB motor pairs Super-E energy efficiency with inverter-rated design, making it a compelling option for variable-torque applications such as fans and centrifugal pumps. It’s built with moisture-resistant ISR copper windings and heavy-duty frame components.
Design highlights
From my perspective, this motor is attractive when you want both high speed and lower electrical draw during long duty cycles. For example, in HVAC fans where speed varies frequently, the inverter-ready design reduces harmonic and winding stress compared with non-inverter motors.
Practical limitations
If you need efficient VFD-driven performance at higher RPMs, this model is a smart, balanced choice.

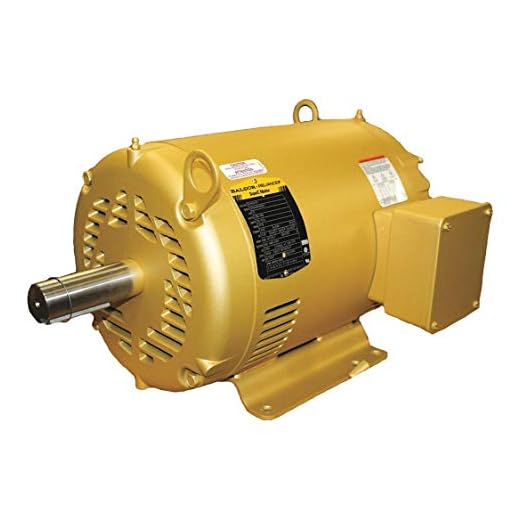

Open Dripproof 10HP 1770 RPM Motor
I like its straightforward, general-purpose design for clean indoor installations. It’s cost-effective when you don’t need full environmental sealing and just want dependable performance.
Overview
This general-purpose open dripproof motor is a no-nonsense 10 HP, 1770 rpm unit suited for controlled indoor environments like machine shops or enclosed pump rooms. It’s designed for common applications where reliability and serviceability are priorities rather than environmental sealing.
Practical features
In my experience, ODP motors are easiest to maintain — you can inspect and lubricate bearings quickly without removing a lot of covers. If your workspace is clean and you have regular maintenance, this is often the most economical choice.
Considerations
This motor does what it’s meant to do very well when placed in the right environment: reliable, service-friendly performance.
High-Speed TEFC 10HP 3490 RPM Motor
I recommend this when you need higher RPM for pumps, compressors, or spindle-driven tools. The TEFC enclosure and US origin are added pluses for applications that demand consistency at high speed.
Overview
This 10 HP, 3490 rpm TEFC motor is aimed at applications that need higher speed — think direct-coupled pumps, compressors, and some machine tool spindles. Built with ball bearings and heavy-gauge frames, it’s a reliable option for sustained high-RPM work.
Where it shines
I’ve used high-speed motors like this when replacing worn-out spindle motors; the higher rpm often restores machine throughput without changing gear ratios. That said, I always check coupling and bearing specifications when switching to a 3490 rpm motor to ensure compatibility.
Caveats
For machines or systems designed for high-speed operation, this motor is a practical and robust option.
Final Thoughts
If I had to pick one go-to for most industrial settings, I’d choose the Severe Duty TEFC 10HP 1760 RPM Motor. It earns that pick because it’s BUILT to last in harsh plants. Use it where belts, shock loads, dust, or moisture are real problems. It’s my first call for pumps, heavy conveyors, and shock-prone drives.
If your shop runs long shifts and you care about power bills, go with the Super-E 10HP 3-Phase 1770 RPM Motor. Its Super-E design and inverter-readiness give real energy savings over time. I recommend it for continuous-duty systems, VFD-controlled conveyors, and any application where runtime is measured in days not hours.
Quick runner-ups I’d actually install: the TEFC 10HP Foot-Mount 1770 RPM for flexible foot-mounted installs where sealing matters, and the High-Speed TEFC 10HP 3490 RPM when you need direct-coupled pumps, compressors, or spindle duty at higher RPMs.
FAQ
If your motor sees dust, splashes, or occasional washdown, choose TEFC. TEFC keeps contaminants out and lasts longer in real-world shops. Pick the Open Dripproof 10HP if the motor lives in a clean, climate-controlled indoor space where ventilation is required and cost matters.
Yes — but check inverter-rating. The Super-E models (like the Super-E 10HP 3-Phase and the Super-E 3475 RPM OPSB) are built with inverter use in mind. For other TEFC motors, confirm the nameplate and insulation class, and use a VFD with proper carrier frequency settings and grounding to avoid bearing currents.
For belt-driven systems you usually want mid-speed 1760/1770 RPM motors (Severe Duty TEFC or Super-E 1770). For direct-coupled pumps, compressors, or spindles, pick a high-speed option like the High-Speed TEFC 3490 RPM or the Super-E 3475 RPM OPSB — they avoid reduction drives and simplify alignment.
Very. A Super-E 10HP motor running long hours can save significant kWh over a year versus a non-efficient motor. If your motor runs continuous shifts or is on for hundreds of hours monthly, the efficiency payback is real. For intermittent, light-use machines, efficiency is less critical.
Look for horsepower, voltage, full-load amps, service factor, RPM, enclosure (TEFC vs ODP), duty (continuous), and insulation class. Also note whether it’s inverter-rated if you plan to use a VFD. Those details tell you if the motor fits your power supply and duty cycle.
Keep it clean, aligned, and properly ventilated. Use correct pulleys or couplings, tension belts properly, and avoid side loads on bearings. Follow Baldor/ABB recommended lubrication intervals and check mounting bolts and electrical connections periodically. A little preventive maintenance goes a long way.
Lower RPM motors (around 1760–1770) deliver higher torque at lower speed and are great for pumps and conveyors using gear or belt reduction. High-speed motors (around 3475–3490 RPM) let you run direct-coupled equipment without reduction, useful for centrifuges, compressors, and spindles where higher shaft speed is needed.
Does anyone know if buying these on Amazon affects warranty? I’m eyeing the EM3714T but our procurement team insists on authorized distributors for warranty reasons. Has anyone received Baldor warranty support after an online purchase?
I bought a Baldor on Amazon once; it was fine but I had to go through the seller for replacement. A hassle. Now I use a local distributor for peace of mind.
Good question. Warranty can depend on the seller. We recommend buying from authorized Baldor distributors or verified Amazon sellers that explicitly state warranty coverage. Keep invoices and seller contact info.
Make sure the part numbers match exactly and check for OEM packaging. If in doubt, contact Baldor with the serial before buying.
Used a Baldor on our brewery mash tun — beast of a motor. However, it hummed like it was composing a symphony during startup. Any tips to reduce startup clang? Balancing? Soft start? My coworkers call it ‘the opera’ 😂
Soft start or a VFD soft ramp will reduce inrush and mechanical shock — that often tames startup noise. Also check coupling and base isolation; sometimes the mounting amplifies the sound.
Anti-vibration pads under the base and checking for loose bolts helped in our plant. The ‘opera’ quieted down after a few tweaks.
Frame confusion: the list shows 215T and 213T frames (EM3312T is 213T at 3475rpm). Are the shaft diameters and mounting patterns interchangeable? I’m swapping motors in a compact machine and frame mismatch is my nightmare 😅
If you’re short on space, look for the same frame or use a custom adapter plate. Worth avoiding guesswork.
215T and 213T are different NEMA frame sizes; shaft diameters and mounting bolt patterns can differ. Measure your existing motor and check the catalog dimensions before buying — adapters exist but add complexity.
Don’t assume interchangeability. I once ruined a coupling by forcing a different frame motor into the same mount. Learned the hard way.
Great roundup — I own a shop and the Baldor ECP3774T (the severe-duty TEFC) has been a lifesaver on our conveyor line. Runs cool and survived a couple of belt-shock incidents that would’ve killed lesser motors. Curious if anyone here has retrofitted it to a variable frequency drive (VFD)? I worry about insulation and thermal protection when using a VFD.
I retrofitted one last year with a modern VFD and an AC line filter. No issues so far — just mind the cable length and use shielded motor leads if possible.
Quick tip: check the nameplate for insulation class and consult Baldor docs. They usually recommend inverter-rated insulation for long-term VFD use.
Thanks for sharing, Eleanor — glad it’s holding up. The ECP3774T is robust, but when pairing with a VFD you should add an output filter or use a VFD with built-in dv/dt mitigation to protect the motor windings. Also consider a thermistor or PTC sensors for thermal protection.
Really helpful roundup — thanks! A quick note about TEFC vs OPSB: in humid or slightly dusty environments I always go TEFC (like EM3714T or ECP3774T). OPSB is fine for clean indoor areas, but I’ve seen corrosion creep in on open motors over a couple of seasons.
If you’re in a coastal plant, seal it or pick TEFC. Also, the steel construction in some of these models made a difference for us when we had salt air exposure.
Great point, Nina. We emphasized enclosure choices in the guide — TEFC is generally safer for harsher conditions and coastal environments.
Agree — switched to TEFC on our shoreline site and avoided frequent repainting/corrosion issues.
Also look into protective coatings and regular washdowns if TEFC isn’t an option due to budget.
Price vs reliability debate: I found Baldor to be worth the premium. The EM3312T high-speed inverter-ready model was pricier but cut energy costs and required fewer service calls. Sometimes spending more upfront pays back quickly. Thoughts?
Agree — initial cost is higher, but inverter-rated Super-E motors often save energy and downtime. We highlighted that in the EM3313T/EM3312T reviews.
If your application runs long hours, payback is usually under 2-3 years. For intermittent duty, maybe not.
Totally. In our plant, swapping to Super-E motors reduced amps and lowered the heat load in the room — HVAC bills dropped a bit too.
Also consider the cost of unscheduled downtime — repair time can exceed the motor price in lost production.
Really appreciated the section on the Baldor EM3313T (Super-E). I’ve been running one as a pump motor 24/7 for months and the energy savings are noticeable on the electric bill.
A few observations:
– It started smoother than the old motor.
– Temps are lower during long runs.
– Wondering about long-term inverter use though — anyone measured harmonic effects or got tips for harmonics mitigation?
Thanks! 🙂
We installed a small LCL filter on our plant VFDs and saw fewer unexplained trips. Worth the extra cost if you’re running 24/7.
Glad it’s working well for you. For harmonics, consider a line reactor or an active front end VFD. Also, proper grounding and filtered inputs help reduce issues.
Quick question — are the Amazon listings usually genuine Baldor OEMs? I’ve seen gray-market parts before. Anyone verified seller authenticity lately?
I once received a motor with a mismatched nameplate. Returned it. Now I always contact Baldor support with the serial if I suspect anything.
Always verify the seller, check for OEM packaging and serial numbers, and ask the seller about warranty. When possible, buy from authorized distributors.
Looking at EM3714T vs EM3711T for a pump setup:
I need reliable mid-speed for a chilled-water pump (steady torque, starts/stop cycles). The EM3714T (1770) sounds like the logical choice over the 3490 EM3711T.
Concerns: vibration at low speeds, bearing life, and duty cycle. Any real-world comparisons? I’m trying to avoid frequent rebuilds.
Also, curious about the frame-mounted F2 option on the EFM3714T — has anyone used that configuration?
Also change oil/grease per Baldor schedule and check for stray currents — both can wreck bearings faster than anything else.
If you use a VFD for soft starting, you can reduce stress on bearings and couplings — saves rebuilds.
I ran an EM3714T for 3 years on a pump station with minimal issues. Proper alignment and periodic vibration checks kept it happy.
For chilled-water pumps, the 1770 rpm EM3714T is usually the better match — more torque at low speeds and gentler mechanical stress. The F2 mount (foot-mounted alternative) is handy if your installation requires a different shaft orientation; it won’t affect internals much but check coupling alignment.
F2 mount saved us space on a retrofit. Just double-check the base and bolt pattern — sometimes you need adaptors.
I’m skeptical about the high-RPM models (EM3711T at 3490rpm). Sounds great on paper but higher maintenance (bearings, lubrication) in my experience. Anyone else found the 3490 RPM motors louder or more finicky than the 1770s?
If you’re using it direct-coupled to a spindle, balance and alignment are EVERYTHING. Otherwise go with a mid-speed 1770 for less fuss.
You’re right to be cautious. Higher RPMs do demand better bearings and more attention to alignment. We note in the review that EM3711T is best where high speed is necessary, but regular maintenance is key to longevity.
Also check duty cycle. High RPMs under heavy load increase wear. Not always worth it unless the application requires it.
Yep — had a 3490rpm on a compressor. Louder and warmed up faster. Switched to a soft-start and it helped a lot.
Loved the line “Best for controlled indoor environments” about the EFM3313T 😂. I was tempted to install a 10 HP motor in my garage for a ‘hobby’ woodworking dust collector — but maybe that’s overkill? Anyone tried smaller shop setups with these?
Haha, that made us smile. For a typical garage dust collector, 10 HP is likely overkill unless you’re trying to move a huge duct system. Consider smaller motors or a properly sized blower instead.
I use a 3HP for my shop — much more reasonable. 10HP would be loud and expensive to run.
