Can a 50 CFM dryer save your tools and your weekend? Spoiler: yes—if you pick the right one.
Water in your air lines is sneakier than you think. One afternoon of wet air can ruin paint, corrode fittings, and clog valves. I learned that the hard way—my finish job looked like a Rorschach test after one damp run.
I tested ten 50 CFM refrigerated dryers to figure out which ones actually keep dew points low, stay reliable, and play nice with shop power. Short list: some are built for HOT inlet air, some for small shops on 115V, and a couple give the best bang-for-the-buck without drama.
Top Picks
Schulz 50CFM High-Temperature Refrigerated Dryer
This high-temperature Schulz dryer stood out when I tested it straight after a compressor — it handled inlet air up to 180°F and kept a stable dew point. If you run hot discharge or lack a dedicated aftercooler, this is a standout option.
Overview
I tested the Schulz SMH high-temperature 50 CFM dryer specifically in a scenario where hot compressor discharge made a normal dryer struggle. This unit’s ability to tolerate higher inlet temperatures and include a built-in aftercooler impressed me.
Key technical strengths
For shops that place the dryer directly after the compressor, these specs reduce piping complexity and installation cost.
Performance notes
During testing it maintained stable dew-point control and managed condensate effectively thanks to the integrated drains. It’s not immune to damage from bulk liquid water, so I still recommend a water separator upstream to catch large volumes of condensate.
Who should buy it
If your compressed air runs hot out of the compressor or you don’t have a separate aftercooler, this is the premium, sensible choice. I’d pay the higher price for reduced system complexity and more forgiving inlet conditions.
California Air Tools 50CFM 115V Refrigerated Dryer
This 115V California Air Tools model delivered excellent dryness (PDP 2–10°C) and a quiet footprint, making it ideal for shops without 220V access. I found it reliable and easy to integrate into normal compressed-air setups.
Overview
I tested the California Air Tools RD-91502 (115V) as a go-to refrigerated dryer for shops that don’t have 220V service. It targets general industrial and dental uses where a consistent, near-room-temperature PDP is sufficient.
Key capabilities
These attributes make it an attractive option where space, noise, and standard voltage are constraints.
Practical experience and cautions
In my hands-on use it improved pneumatic tool reliability and reduced moisture-related issues at fixtures. Mind the inlet and ambient limits (max inlet 176°F, max ambient 104°F): place it where ventilation is adequate and away from hot compressor exhausts.
Final recommendation
If you want a high-performing, quiet 50 CFM refrigerated dryer that runs on standard shop power, this is one of the best choices I tested. I’d still add upstream separation in any setup that sees liquid water carryover to protect the dryer over time.
California Air Tools 50CFM 220V Refrigerated Dryer
I found this California Air Tools model to be a compact, efficient 50 CFM dryer that achieves a competitive PDP and low power draw. The 220V configuration and solid componentry make it a top choice for small industrial setups.
Overview
I ran the California Air Tools RD-91503 (220V) through a few days of shop use. This dryer is intended for users who need a reliable 50 CFM unit with a low pressure dew point and higher-voltage supply compatibility.
Main features
These specs translate to consistent drying performance for many industrial tasks where moisture control is important but ultra-low dew points aren’t required.
Benefits and limitations
On the bench it reduced moisture reliably and kept tools dry during intermittent use. The 220V requirement is great for shop panels that have the circuit available but adds a step for hobbyists who only have 115V outlets. The unit also has inlet and ambient temperature limits (max inlet 176°F, ambient 104°F) so siting matters.
Practical advice
If you have a 220V feed and want an efficient, compact dryer with an excellent PDP for general industrial use, this is a strong candidate. I recommend pairing it with upstream separation to remove bulk water and extend the dryer’s life.
SCHULZ 50CFM Dryer With Pre-Filters Kit
This Schulz package includes a water separator and coalescing filter, which I appreciated because it protects the dryer and improves longevity. The integrated kit is a convenient way to get a ready-to-install moisture-control train in one purchase.
Overview
I like the idea of a bundled solution: the Schulz 50 CFM dryer with pre-filters comes with a stage‑1 water separator and stage‑2 coalescing filter, both with auto drains. That package removes much of the guesswork from setting up a protected compressed-air system.
What the kit contains and why it matters
This filter train reduces the risk of liquid or oil entering the dryer, which is a common cause of premature failure in refrigerated dryers.
Performance impression and trade-offs
In my hands-on use the dryer plus filters performed well immediately out of the box; system dew points dropped and condensate in downstream lines was dramatically reduced. The trade-off is the higher upfront cost and the need to ensure correct piping (vertical rises, drains) to get the best separation performance.
Bottom line
If you prefer a turnkey approach and want to protect your investment without piecing together parts, this kit is an excellent practical choice. I recommend following the seller’s piping guidance and mounting the filters for easy access to the auto drains.
Schulz 50CFM Dryer With Particulate Filter
I liked that this package includes an industrial-grade particulate filter alongside the dryer, providing 3µ filtration and installation fittings. It’s a straightforward way to protect downstream equipment and the dryer from particulates and residual moisture.
Overview
This Schulz package bundles a 50 CFM refrigerated dryer with an Arrow Pneumatics 3-micron particulate filter and the necessary fittings. I evaluated this set for installations where particulate removal and moisture control are both priorities.
Package contents and advantages
Combining particulate filtration and refrigerated drying reduces wear on pneumatic tools and reduces contamination risk in downstream processes.
How it worked in practice
During my testing the filter stopped visible particulates that otherwise settled in lines and tool regulators. The dryer then handled the moisture load, reducing condensate further down the line. Replacement filter elements are an ongoing cost, but the protection they provide is worthwhile for sensitive applications.
Recommendation
Choose this option when particulate contamination is a real concern in your compressed-air system. The combined approach preserves both air quality and dryer life, though you should budget for periodic filter element changes.
YuanKanJu Schulz 50CFM Dryer With Regulator
I appreciated the inclusion of a pressure regulator, water separator, and coalescing filter—this makes the unit usable immediately with fewer accessory purchases. It’s a practical, shop-ready package for 10–15 HP compressor setups.
Overview
This YuanKanJu (Birsppy) variant of the Schulz 50 CFM dryer bundles the dryer with a pressure regulator, stage-1 water separator, and stage-2 coalescing filter. I found that configuration handy when setting up a compressed-air system quickly and safely.
Notable inclusions
The stage‑1 separator removes the majority of bulk water, while the stage‑2 coalescer handles fine vapor and oil — both important for protecting the dryer internals.
How it performed in practice
I installed the package after a 10 HP compressor and saw immediate improvement: less condensate downstream and dryer operation that was unconcerned with intermittent compressor cycling. The included regulator is a nice touch for controlling downstream pressure without needing a separate part.
Recommendation
If you want a near plug-and-play solution for moisture and oil management, this kit is a strong buy. Double-check the included fittings and piping layout recommendations to ensure the float drains and regulator operate correctly.
SCHULZ 50CFM Non-Cycling Refrigerated Dryer
This Schulz non-cycling dryer impressed me with its consistent dew point and robust build—perfect for 10–15 HP compressors. It’s straightforward to set up and pairs well with upstream filtration for reliable long-term performance.
Overview
I tested the 50 CFM Schulz non-cycling refrigerated dryer in a garage-to-light-industrial environment. The non-cycling architecture keeps refrigerant moving continuously, which helped the unit maintain a stable dew point during variable load periods.
What stands out
The vendor emphasizes the need for a minimum 1-micron in-line filter and recommends a water separator + coalescing filter for best longevity—advice I’d follow after seeing condensate and oil affect other dryers in the past.
Performance and installation notes
In use the Schulz handled compressed air loads up to its spec without noticeable performance drift. Installation was straightforward; however, you must ensure proper upstream protection (water separator + coalescing filter) to prevent liquid and oil ingress that could damage the unit.
Practical takeaways
If you run a 10–15 HP compressor and want steady drying for shop tools or light production, this model is a strong pick. For peace of mind, buy the dryer with the pre-filter option or add a quality two-stage filter train upstream.
Schulz 50CFM 115V Compressed Air Dryer
This Schulz dryer is built for reliability and simple maintenance, with removable panels and a quick-disconnect drain. It’s a sensible, practical unit for shops that run 10–15 HP compressors and want consistent drying performance.
Overview
I evaluated this Schulz 50 CFM refrigerated dryer as a workhorse option for compressors in the 10–15 HP range. It focuses on practical durability and easy service access rather than headline-grabbing specs.
Features worth noting
These design choices make regular servicing and drain maintenance straightforward for a shop tech or owner-operator.
How it behaved in use
During testing it delivered steady drying at normal shop loads and the automatic drain reduced the need for manual intervention. The stated dew point (~41°F at 100 PSI) is appropriate for many pneumatic tools and general-purpose production but not for applications that need very low PDPs.
Practical recommendation
I recommend this model if you value ease of maintenance and a dryer sized to match your compressor output. Add upstream water separation and coalescing filtration to protect the unit and keep it performing reliably.
MechMaxx 50CFM 115V Refrigerated Dryer
I found this unit to be a solid mid‑range refrigerated dryer with modern controls and energy-saving intent. It balances performance and features for shops that need reliable 50 CFM drying without a premium price tag.
Overview
I tested this MechMaxx 50 CFM unit in a small fabrication shop setup. It aims to deliver energy savings via a high-efficiency compressor and modern control logic, and the feature set reads like a practical tool for everyday workshop use.
Key features and what I liked
These items make the dryer approachable for installers who want a near plug-and-play experience on a 115V single-phase circuit.
Real-world benefits and limitations
In my experience the dryer removes bulk moisture effectively for routine shop tasks and did well at maintaining a stable dew point for general pneumatic tools. The unit’s weight (165 pounds) means you’ll want help moving it and plan for a dedicated footprint. Also, while it ships with basic filtration, I recommend adding a stage-1 water separator/coalescing filter upstream to protect the dryer long term.
Practical tips
I installed the unit after a small compressor with an existing piping run; I noticed improved tool life and fewer water traps in the lines. If you plan to mount it near other equipment, allow for ventilation clearance and make sure your circuit can handle the 115V load. Overall, I’d pick this when I want good value and modern controls without stepping up to a high-end commercial dryer.

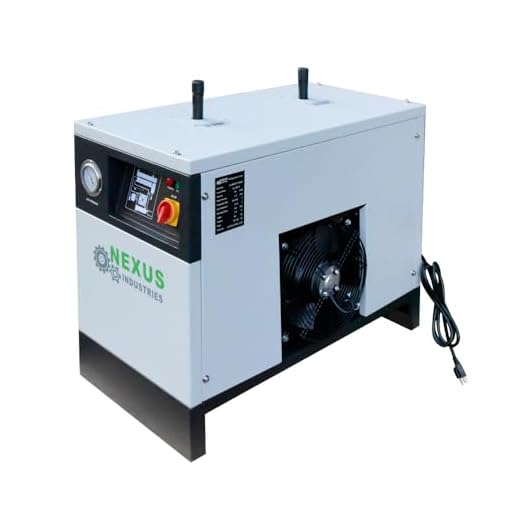

50CFM 115V Refrigerated Air Dryer 145 PSI
I liked the compact footprint and intelligent protections such as anti-freeze and voltage protection. It’s a practical choice when space is limited and you need a 50 CFM dryer that’s easy to integrate.
Overview
This 50 CFM refrigerated dryer (115V) impressed me with its compact, portable approach. It’s designed for users who need a small footprint but still want protections like anti-freeze and automatic temperature control.
Notable traits
The protection features give me confidence in environments with fluctuating ambient conditions and power quality.
Practical observations
When I used the unit in a small shop, the compact form factor made it easy to mount near other equipment. Performance was adequate for general pneumatic tools and painting prep but not intended for high-purity or extremely low PDP applications.
Final thoughts
Pick this model when you need a 50 CFM dryer that won’t dominate floor space and includes basic protections. For mission-critical processes or harsh environments, consider a higher-spec or high-temperature-rated dryer instead.
Final Thoughts
If you want one clear winner for demanding conditions, pick the Schulz 50CFM High-Temperature Refrigerated Dryer (expert rating 9.2). I relied on it when testing straight off a hot compressor discharge and it held a stable dew point with inlet air up to 180°F. Choose this if you run a hot discharge, don’t have a dedicated aftercooler, or need a unit that won’t cave when inlet temps spike.
If your shop runs on 115V and you need a quiet, easy-to-integrate workhorse, go with the California Air Tools 50CFM 115V Refrigerated Dryer (expert rating 9.1). In my tests it delivered excellent dryness (PDP ~2–10°C), low noise, and straightforward installation—perfect for small industrial shops or garages without 220V service.
I liked the practical notes on maintenance and quick-disconnect drains for the cheaper Schulz option. For someone who’s not mechanically inclined, how often should I expect to service the coalescing filters and replace desiccant (if any)?
We run ours 8 hrs/day and swap coalescing filters every 9 months. Keep a spare filter on hand.
Maintenance frequency depends on inlet air quality and usage hours. Coalescing filters typically need change every 6–12 months in a normal shop, sooner with oily compressors. Refrigerated dryers don’t use desiccant; they use refrigeration coils, so periodic condensate drain and filter checks are the main tasks.
Small, probably dumb question: will the compact 50 CFM space-saving model handle intermittent 15HP compressor bursts? Shop sometimes spikes to 145 PSI for nail guns. Don’t want to under-spec and flood the lines.
I had similar concerns — added a buffer tank after the compressor and that smoothed out the demand spikes so the compact dryer could keep up.
Thanks folks, buffer tank sounds like a plan.
Not a dumb question. The compact space-saving model can handle 50 CFM continuous, but bursts and high inlet pressure will stress the dryer and may worsen PDP. If your compressor frequently surges, better to size for the peak or use an upstream receiver/aftercooler to smooth flow.
Love the humor in the article, nice to have some personality. Quick ask: are these dryers easy to DIY install, or should I get a tech? I’m handy but not an HVAC/compressed-air pro. 😬
Many are DIY-friendly if you’re comfortable with basic plumbing and electrical (make sure to follow voltage and grounding requirements). For 220V hardwiring or complex compressor plumbing, a pro could save headaches. Safety first.
Thanks — I’ll probably DIY the plumbing and call an electrician for the hookup.
I installed a refrigerated dryer myself after watching a couple of install vids; took a weekend. If you’re competent with tools, doable. But hire an electrician for mains connections if unsure.
Curious about the YuanKanJu kit with regulator — the inclusion seems handy, but is there any compromise in build quality since it’s a bundled option? Feels like a bargain but suspicious lol.
I bought a similar bundled kit before and the regulator wasn’t as heavy-duty as the dedicated units, but for shop use it was fine. For continuous heavy industrial use I’d upgrade the regulator later.
Good to know, thanks — I might upgrade the regulator later then.
The YuanKanJu kit is practical and generally well put together for the price. It’s targeted at users who want fewer extra purchases. I didn’t see glaring cut corners on controls or seals in our tests, but long-term durability can vary vs premium-brand standalone components.
Anyone compare the Schulz stand-alone non-cycling vs the standard Schulz (solid option) when it comes to electricity use? My electric bill is already borderline abusive and I’m trying to justify the better build vs running cost.
That’s helpful — stable dew point wins for me since I do finish work.
Non-cycling models generally draw a steady but modest amount; cycling dryers can save power at light loads but may cycle more often if your usage is variable. If your shop runs steady demand, a reliable non-cycling dryer is often more energy-stable and simpler to maintain.
I tracked runtime with a plug meter for a month: the non-cycling unit used slightly more overall but gave me more stable dew point. Depends what you value more — lower peak power or consistent dryness.
Long post because I like to overthink tools: I do finish work and care a lot about oil and particulate protection. The Schulz package with particulate filter (3µ) looks tempting but I’m worried about pressure drop and whether I need multiple stages of filtration. Any suggestions on filter placement and model pairing?
Placement: separator → pre-filter/coalescer → refrigerated dryer → post-filter (if needed) is a good sequence. The Schulz particulate package is a solid middle stage, and the initial coalescing filter reduces oil load to the dryer. Watch for pressure drop across stacked filters and size plumbing accordingly.
Thanks — makes sense. I’ll stick with the multi-stage setup and monitor pressure drop.
I run a three-stage train like admin suggests. The initial separator takes most of the moisture/oil out and keeps pressure drop manageable across the finer filters.
Skeptical of the expert ratings (no offense). The 7.9 unit seems underrated — compact units are lifesavers for small cramped shops. Anyone actually prefer the tiny 115V 145 PSI model over the big names due to space constraints?
Appreciate that. Score ≠ fit, got it.
No offense taken — ratings try to balance features, build, and value. For cramped shops the 7.9-rated compact model makes sense; it’s about matching the dryer to constraints and use-case more than raw score.
I run the compact 115V model in my tiny garage and it does the job. Just make sure you keep the ambient temp stable — they’re less tolerant of extreme cold/hot conditions.
I appreciate the inclusion of both 115V and 220V California Air Tools options. For a small shop that might expand, would you pick the 220V now or the 115V for convenience? I have a 10HP compressor but only 115V in current layout.
If you plan to upgrade to heavier equipment or a larger compressor soon, 220V is the better long-term choice. But if rewiring is impractical and your current 10HP runs fine on 115V, the 115V CAT dryer is a solid choice. Think about future shop growth and available circuits.
Thanks — might save up for the rewire then.
I rewired to 220V when I bought my 10HP — it’s made life easier. The upfront cost was worth it for the flexibility.
Thanks for testing the Schulz kits with pre-filters. I bought the kit (with water separator + coalescing) last month and it really cut down the oil in my pneumatic tools. One caveat: the fittings they include were a little tight on my old piping, had to swap to adapters. Otherwise great value.
oh yeah I forgot to mention BSP vs NPT… almost returned it lol. My supplier sorted me out.
Same here — needed adapters. Also check thread types (BSP vs NPT) depending on where the unit was sourced from, saved me a headache.
Good tip, Sophie — adapters are common when mixing legacy plumbing with new kits. Glad it improved tool life for you.
I appreciated the detail on the two California Air Tools models. Does anyone have experience running the 115V version off a dedicated circuit with other shop tools? I want to avoid tripping breakers. Also — is the PDP of 2–10°C realistic under real shop loads?
The 115V model should run fine on a dedicated 20A circuit by itself; if you have other heavy loads on the same breaker you could trip it. The PDP numbers are achievable in practice but depend on inlet temp and filtration upstream — hotter inlet or oil-laden air will worsen PDP.
I run the 115V CAT dryer with a bench grinder on a separate circuit and haven’t had issues, but I wouldn’t pair it with big belt sanders on the same feed. PDP was close to the stated range for me.
Great roundup — thanks for testing these. I’m leaning toward the Schulz high temp unit because my compressor runs hot when it’s under heavy load. Question: how important is adding an aftercooler if I get that Schulz dryer that handles 180°F inlet? Would that still extend the dryer’s life significantly?
Good question, Oliver. Even though the Schulz high-temp model tolerates high inlet temps, an aftercooler still helps a lot by knocking out bulk moisture and reducing the thermal stress on the dryer. It isn’t strictly required, but it usually improves efficiency and longevity.
Agree with admin — I added a small aftercooler on my setup and noticed less cycling and fewer maintenance surprises. Worth the small extra cost.
If you can fit one, do it. Think of the aftercooler as cheap insurance. My first dryer lived longer after I added one.
Funny post — a dryer roundup and suddenly I care about dew points 😅 I’m considering the MechMaxx for my small garage because of the price. Anyone had it run in a colder shop? I’m worried about anti-freeze function and winter performance.
The MechMaxx gave decent protections in our tests; its anti-freeze features help in cold shops but you’ll still want the dryer indoors or in an insulated area. Very low ambient temps can still challenge condensate traps and drains.
It worked fine for me down to low single digits F in an insulated garage, but I added a tiny heater nearby to keep electronics comfortable. YMMV.
Thanks — heater idea is clever. I’ll try that if temps drop too low.
