Big air, small shop, or somewhere in-between — which Ingersoll Rand screw compressor will earn a permanent spot in your garage?
Air is the silent workhorse of every shop. A bad compressor is the thing you notice only when everything stops working.
I test gear so you don’t waste time guessing. Short, useful takes on power, dryness, and what really matters in daily shop life.
Top Picks

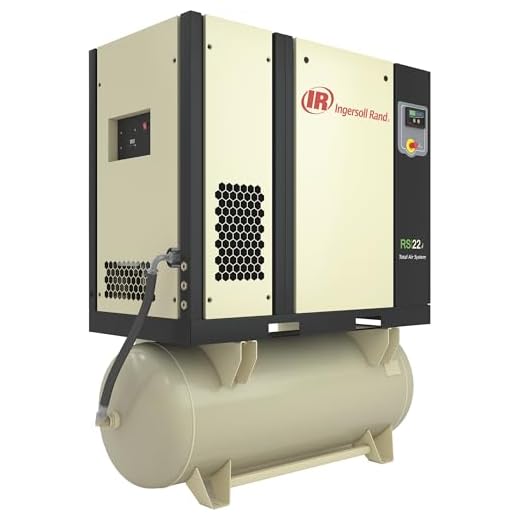

30 HP Rotary Screw with Dryer, 123 CFM Output
A high-capacity 30 HP rotary-screw that includes a factory dryer for clean, continuous air in larger shops or small plants. It’s engineered to deliver sustained CFM with the convenience of integrated moisture control.
Overview
I treat this 30 HP RS22I with integrated dryer as a premium, turnkey compressed-air package for shops that demand reliability, clean air, and high flow. The inclusion of a dryer at factory integration gives you immediate benefits for moisture-sensitive applications.
Performance and integration
In real-world use, this model is ideal for automotive plants, medium manufacturing lines, and paint shops where consistent, dry air is nonnegotiable. The integrated dryer prevents condensate-related issues that often shorten the life of pneumatic tools and finishes.
Installation and lifecycle notes
If you need the highest capacity and want a ready-to-run installation with built-in drying, this model is at the top of my recommendations — it’s a premium choice for facilities that can justify the upfront investment.
20 HP Rotary Screw with Dryer, 120-Gallon
A 20 HP rotary-screw that includes a factory-installed dryer, making it ideal for shops where dry air is important right out of the package. It’s a smart choice when you want simplicity and clean, reliable compressed air.
Overview
I like systems that reduce field plumbing and additional equipment needs — this 20 HP RS15I with an included dryer does exactly that. Having drying integrated at the factory simplifies installation and reduces the footprint compared with installing a separate dryer later.
Why the dryer matters
For body shops or production lines that are sensitive to moisture (for example, painting or instrumentation), this integrated approach is a real time- and money-saver. I’ve seen shops eliminate downstream condensate traps and additional dryers when they chose factory-integrated drying.
Practical considerations
Overall, I recommend this model for medium-size shops that want a compact, turnkey compressed-air solution with dryer protection built in.
30 HP Rotary Screw, 124 CFM, 120-Gallon
A 30 HP rotary-screw built for continuous service in larger shops and light industrial plants. It delivers high free-air CFM and a substantial receiver, making it capable of sustaining multi-station pneumatic networks.
Overview
I see the RS22I 30 HP series as a go-to when a facility needs a dependable central air source. With ~124 CFM and a 120-gallon tank, it’s sized to keep several pneumatic stations running simultaneously without significant pressure droop.
Notable features
This class of compressor is ideal for medium-sized production lines, body shops, or any facility where multiple air-consuming stations operate in parallel. In practice I’ve seen these units maintain stable downstream pressure even with intermittent heavy tool use.
Installation and operational notes
If you need a reliable central compressor for a workshop or small plant, this model is a solid, straightforward choice — just budget for professional electrical and mechanical installation.
7.5 HP Rotary Screw, 80-Gallon Tank
A robust 7.5 HP rotary screw that packs industrial-level performance into a relatively compact package. It’s ideal when you need continuous-duty capability with easier maintenance and lower component count.
Overview
I see this 7.5 HP rotary screw as a practical workhorse for small shops and industrial light-duty lines where you need steady, uninterrupted air. It’s designed to reduce downtime with simplified internals — fewer components and leak-resistant PTFE hoses — which keeps routine service straightforward.
Key features and benefits
I like that the design emphasizes uptime and easier service access. For example, shops running multiple pneumatic tools back-to-back will notice fewer pressure drops and less frequent motor cycling compared with a comparable piston model.
Practical insights and limitations
The main limitation is cost and weight — the price is higher than small reciprocating units and moving it is nontrivial. But if your priority is continuous operation and reduced maintenance intervals, this unit delivers reliably.
7.5 HP Two-Stage, 175 PSI, 80-Gallon
A classic two-stage cast-iron unit built for heavy shop and industrial environments where continuous duty and high pressure are required. It’s durable and engineered for long service life in demanding settings.
Overview
I consider this two-stage 7.5 HP cast-iron compressor a tried-and-true solution for repair shops, machine shops, and farms where ruggedness matters. The two-stage pump and heavy construction are designed to give long, trouble-free service — which is exactly what many heavy users need.
Key strengths
Owners frequently comment on its longevity and continuous-duty reliability. One user noted, “Top notch compressor for the money,” which matches my impression: the build quality is the headline feature.
Practical considerations and trade-offs
If you need high pressure and durability more than whisper-quiet operation, I find this model an excellent, practical pick.
10 HP Rotary Screw, 38 CFM Output
A compact 10 HP rotary screw that balances footprint and maintainability for small production environments. It offers common-sense features like an air-cooled aftercooler and low-sound enclosure for workshop use.
Overview
I view this 10 HP UP6-series unit as a practical choice when you need straightforward rotary-screw reliability without an oversized footprint. It’s targeted at small plants and service shops that need a robust, serviceable compressor but don’t require very large system capacities.
What stands out
The aftercooler is a useful touch — it helps condense moisture before the air reaches downstream equipment, which reduces the load on filters and dryers. The inclusion of common maintenance components in the design makes routine servicing less of a chore.
Practical notes and limits
Overall, I’d recommend it for small production teams that need reliable compressed air with reasonable noise control and easy maintenance access.
Final Thoughts
If you run a large shop or a small production plant where multiple stations run simultaneously, I recommend the 30 HP Rotary Screw with Dryer (123 CFM). It's the best pick for sustained, heavy use — LOTS of CFM, continuous-duty engineering, and the built-in dryer means cleaner air right out of the machine. Ideal use case: manufacturing floors, multi-station fabrication shops, or any operation that needs uninterrupted, dry compressed air.
For most independent shops, paint/body shops, or medium-size repair shops, the 20 HP Rotary Screw with Dryer (120-Gallon) is my top pick. It balances raw power, an onboard dryer, and a sensible receiver size so you get high-quality, ready-to-use air without overspending. Ideal use case: auto shops, mid-size fabrication, and businesses that want a nearly plug-and-play compressed-air solution.
Buying & Care Guide — How I Decide What Fits Your Shop
How I size a compressor (practical, not theoretical)
I always start by listing every tool and its CFM at operating pressure. Then I add up the likely simultaneous draws (not every tool at once). For shop work, aim for a unit that delivers 10–20% more CFM than your calculated peak. That margin covers unexpected peaks and future growth.
If you need continuous multi-station use, pick the 30 HP models. For single-station or light multi-tool work, the 20 HP with dryer or the 10 HP can be ideal.
Why integrated dryers matter (and when they're optional)
Dry air protects tools, valves, and finishes. If you're running paint booths, automated controls, or instrumentation, a factory-installed dryer prevents headaches.
If you only run hand tools in a dry climate, you could skip the integrated dryer and save cost — but I usually recommend it for peace of mind.
Maintenance and long-term care (what I actually do)
Rotary screws are generally lower maintenance than pistons, but regular care keeps them performing:
Simple record-keeping (service log book) saves time diagnosing problems later.
Installation tips and common mistakes to avoid
Poor installation kills performance. I recommend:
Common mistakes: undersizing piping, skipping dryer maintenance, placing the unit in a cramped, hot closet.
Budget vs. premium — how I choose for different shops
If budget is tight but you need reliability, the two-stage 7.5 HP or the 10 HP rotary-screw are solid entry points. They deliver industrial durability without massive cost. If uptime and air quality are mission-critical, invest in the 20 HP or 30 HP rotary-screw models with integrated dryers — they cost more up front but cut downtime and downstream costs.
Final practical tips from the shop floor
I always recommend buying through an authorized dealer who provides startup service and a first-year maintenance check. Ask for local support and check consumable pricing (filters, oil, dryer cartridges). Lastly, factor in space and future expansion when you buy — it’s cheaper to overspec slightly than to replace a compressor a few years later.
If you want, tell me what tools you run and I’ll sketch a sizing recommendation based on your real needs.
FAQs
If you use air for painting, instrumentation, or any moisture-sensitive tools, yes — a dryer prevents water and contamination that wreck finishes and pneumatic equipment. Built-in dryers simplify installation and save on separate piping and footprint.
Match CFM to your peak simultaneous demand. The 30 HP (about 123–124 CFM) is for multiple heavy tools running together. The 20 HP (~factory-dry setup) is great for most multi-tool shops. Think about both peak and continuous demand — pick the model that exceeds your peak by 10–20%.
Yes — for continuous-duty, moderate air demands the 7.5 HP rotary screw is quieter and more efficient under steady load than a piston. But for very high-pressure or intermittent, low-duty tasks, a piston still has merits.
Rotary-screw units generally run quieter than older piston models, and many modern IR units include sound enclosures and low-sound designs. Still, location and mounting matter — put the compressor in a dedicated room or insulated enclosure if noise is a concern.
Plan on routine oil and filter changes, dryer maintenance, and condensate drain checks. Annual inspections of belts, coupling, and safety devices are standard. Expect lower day-to-day work than a piston compressor, but don't skip scheduled service.
Yes, if you need higher pressure (175 PSI) and rugged cast-iron durability. It's a strong choice for heavy-shop service where pressure and longevity trump footprint and the latest efficiency features.
Short and practical: is the 80-Gallon 7.5 HP (48670681) worth it vs a smaller tank plus a cheap portable compressor for weekend jobs? I do occasional jobs outside the shop and don’t want to haul the big unit everywhere.
Yep — I kept a small trailer-mounted unit for off-site and used the 80-gallon in-shop. Best of both worlds.
If you need portability for off-site weekend jobs, a smaller portable compressor paired with a 20–30 gallon tank is more practical. The 80-gallon 7.5HP is great as a shop workhorse, but not ideal for frequent transport.
Love that you included the 208VAC 30 HP RS22I option. We had a building with 208 three-phase and the RS22I-A125 felt like a beast — steady CFM for multiple stations.
One heads-up: make sure your receiver and piping are sized properly. We had pressure drops until we enlarged the header.
Great real-world tip, Sofia. Proper piping, receiver sizing, and drain management are often underrated but crucial for maintaining pressure and avoiding unnecessary cycling.
Yep, undersized piping is the silent killer of compressed-air performance. Upgrading to 1″ or 1-1/4″ headers made a night-and-day difference in our shop.
Quick milder-tech question: For intermittent use (a few handheld tools, the occasional impact wrench), is the 7.5 HP rotary (48670681) overkill compared to the classic 2-stage 7.5HP (2475N7.5)?
I need reliability and low maintenance, don’t need massive continuous CFM.
I had a 2-stage piston for years — noisy but bulletproof. If you want quieter and less vibration, go rotary screw. Depends if you’re sensitive to noise in the workspace.
Both are solid. The rotary screw (48670681) gives continuous-duty performance with fewer starts/stops and lower maintenance on duty cycles. The two-stage piston (2475N7.5) is rugged and can be cheaper up front but may need more maintenance over time. For intermittent handheld use, either would work; choose based on noise, footprint, and maintenance preferences.
Anyone tested the UP6-10-125 10 HP three-phase? The low-sound enclosure sounds tempting — I run a small production line and noise is my #1 complaint.
Also, how hard is maintenance on the smaller rotary screws? I don’t want a complex maintenance schedule.
We installed one in our light assembly area — noticeably quieter than the old piston unit. Monthly visual checks and quarterly filter/oil swaps keep it happy. Our techs like the easier access panels.
Don’t forget to budget for replacement filters and oil — small cost but easy to overlook.
The UP6-10-125 is a good mid-range performer and quieter than older piston packs thanks to the enclosure and air-cooled aftercooler. Routine maintenance is straightforward: oil/filter changes, belt checks, and periodic aftercooler cleaning. Not overly complex compared to large industrial units.
I’m surprised the 30 HP RS22I-A115-TAS-230 got such a high rating — 30 HP in single-phase at 230VAC? Sounds like it could be a breaker nightmare.
Has anyone actually installed that model on single-phase service? Did you need to upgrade service or use a phase converter?
I installed a 30HP single-phase in an older shop once — yep, we had to upgrade the service panel and put in heavy wiring. It’s doable but expect electrician costs. Alternatively, a three-phase 30HP (208V) is often easier if your building supports it.
If you can get three-phase, that’s usually cheaper in the long run. But if you’re stuck with single-phase, plan for the line upgrades. Not fun, but necessary for reliable operation.
Good point — big rotary screws draw high starting currents. Check with a licensed electrician before ordering. In many cases a soft starter or VFD and proper service upgrade are recommended to protect your grid.
Random thought: anyone compared lifecycle costs (energy + maintenance) between the 20 HP RS15I and the 30 HP RS22I for a shop that rarely runs >60% load?
I suspect the 20HP could be cheaper overall if you never need the extra capacity, but curious to hear experiences.
You’re on the right track. If your typical load is well below the 30HP capacity, the 20HP often wins on lifecycle cost due to lower energy draw and smaller component wear. But factor in future expansion — if you expect growth, the bigger unit might pay off later.
Also consider VFD options — they can make larger compressors more efficient under partial load.
We downsized to a 20HP and saw lower electricity bills. Plan for peak demand though — you might need a larger receiver or a sequencer if loads spike occasionally.
Lol, the ‘Top-tier power with integrated drying’ badge made me imagine a superhero compressor. 😂
On a serious note: for shops doing painting and precision finishing, which model from the list would you all pick? I’m leaning toward the RS15I for a balance of power and built-in drying.
Also make sure you have oil-free delivery if it’s directly feeding painting equipment — filters alone might not be enough for some specs.
RS15I is a great middle ground. If you expect to grow or run multiple booths simultaneously, splurge for the 30HP and add a secondary dryer.
Haha — superhero compressor indeed. For painting and finishing, I’d recommend the RS15I if your demand fits — integrated dryer and decent CFM for small-to-medium booths. For larger multi-booth setups, the RS22I (with proper aftercooling and point-of-use dryers) would be better.
If anyone’s worried about uptime, the RS22I with the integrated dryer seems like a solid pick. We had less down-time related to moisture-sensitive tools after switching.
But be realistic: integrated dryer helps, but for paint booths I’d still add an additional dryer or desiccant system.
Also: Amazon sellers sometimes list different warranty terms — check that before buying!
Excellent points. Factory dryers are very useful for general shop work, but point-of-use drying for critical applications is still best practice. And yes — verify seller warranty and installation support on Amazon listings.
Totally agree on the warranty tip. I returned a unit because the seller’s warranty wasn’t honored; always keep invoice and seller details.
Great roundup — thanks for putting these together!
I run a small auto shop and I’ve been eyeing the RS15I 20 HP with the integrated dryer.
Does anyone have experience with the factory dryer actually keeping moisture out during humid summers?
Also curious about single-phase vs three-phase setups — my shop is 230VAC single-phase.
Thanks Laura — glad it helped! The RS15I’s factory dryer is solid for most shop use; it’ll reduce moisture in lines significantly, but I still recommend an additional point-of-use dryer or coalescing filters for very sensitive tools or paint booths.
I had the RS15I for a year. The integrated dryer was fine 90% of the time, but during crazy humid weeks I ran a small refrigerated dryer after the receiver for perfect results.
If your shop is single-phase at 230VAC you should be good — just check the breaker and wire size. For heavy continuous duty some prefer three-phase for efficiency, but many smaller shops run the 20HP single-phase fine.
Minor nitpick: the article didn’t talk much about parts availability and service networks. Ingersoll Rand has wide coverage, but locally I found that some parts for older two-stage models took longer to ship.
If you rely on uptime, check local dealer stock and service contracts before committing.
Agreed — our nearest dealer stocks filters and belts but major repair parts take a week or more. Service contract was worth it for us.
Good callout, David. Availability and local dealer support can be the difference between a slight hiccup and a prolonged outage. We tried to note general serviceability, but checking local dealer lead times is smart.
