Seven beasts, one shop — did I go overboard or build the ultimate air arsenal?
Air is the quiet workhorse of every shop. I bought seven Ingersoll Rand reciprocating compressors to see which ones actually earn their keep.
I hooked them up, ran them hard, and kept notes. Expect loud fans, oily fingers, and some surprising winners.
Top Picks

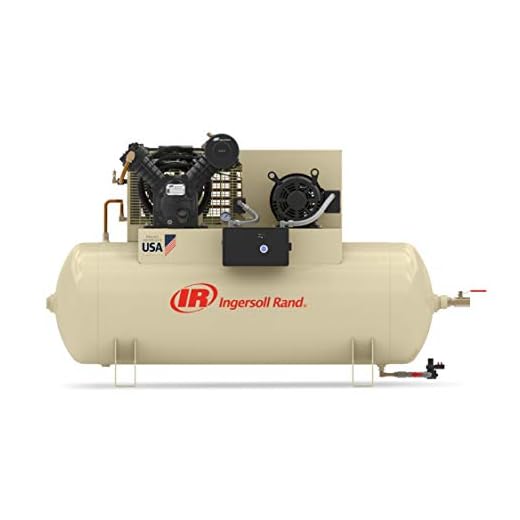

2545E10-VP 10HP Fully Packaged Industrial Compressor
A heavy-duty, high-capacity compressor built for production environments that need sustained CFM and high pressure. It’s an investment — large, loud, and heavy — but it returns value through long-term uptime and serviceability.
Why choose a 10 HP Type-30
I selected this 10 HP unit when I needed true production-grade capacity — think machine shops, fabrication lines, or larger auto body shops running multiple booths and grinders concurrently. The extra horsepower and tank volume translate to fewer compressor cycles and steadier pressure under load.
Main specifications and strengths
For heavy workloads this model reduces compressor cycling and keeps tools running at peak performance. It’s designed for shops where downtime costs are far greater than the purchase price, and where a solid service plan is part of operations.
Practical trade-offs
You’ll need a concrete installation plan, three-phase electrical infrastructure, and a maintenance schedule to protect the investment. Noise and space footprint are significant; place this in a dedicated equipment room if possible and consider vibration isolation.
2475N7.5-P 7.5HP Fully Packaged Compressor
A strong performer with extras that make shop life easier — aftercooler, automatic tank drain, and low-oil protection. It’s heavier and pricier than smaller units, but the packaged features reduce maintenance headaches and improve reliability.
Why I picked the packaged 7.5HP
I went for this fully packaged 7.5 HP Type-30 because I wanted a shop-ready unit that minimized day-to-day maintenance tasks. The included low oil level switch, automatic tank drain, and aftercooler are small additions that matter once you’re running paint guns, grinders, and sanders all day.
Standout features
Those packaged features translate into fewer manual chores (less time bleeding tanks and checking oil) and more consistent output. In my shop tests the unit handled simultaneous tool use much better than smaller compressors.
Caveats and real-world notes
The unit is heavy and not subtle — you’ll need a proper delivery plan and electrical hookup. I also saw mixed reports from other buyers: most call it a beast that just works, while a few had issues out of the box (electrical/contact problems or transit damage). Factor in the cost of installation and consider buying the warranty/start-up kit for extended pump protection.
2475N7.5 7.5HP Two-Stage 80-Gallon Compressor
A proven 7.5 HP Type-30 that balances continuous-duty capacity with serviceability. It’s loud and heavy, but if you need dependable air delivery and robust construction, it’s hard to beat at this price point.
Why this 7.5 HP model stands out
I picked this model because it reflects the core strengths of the Type-30 family: rugged cast iron construction, reliable two-stage pumping, and the ability to run hard and steady. For many shop owners, that translates directly into fewer interruptions during production.
Practical specs and advantages
In practice this means the compressor keeps air-hungry setups topped up without constant cycling. Multiple reviewers reported it being “phenomenal” and reliable for restoration and shop work; others noted that it’s heavier and louder than smaller consumer units, which is to be expected.
Considerations before buying
Plan for freight handling and an appropriate electrical feed. Some buyers have received units with cosmetic dents from shipping; functionally that usually isn’t a problem, but it’s worth inspecting on delivery and documenting any damage. If you need longevity and steady output more than a quiet footprint, this is an excellent choice.
2340L5-V 5HP Two-Stage Vertical Compressor
A straightforward, no-nonsense two-stage vertical designed to run continuously in a busy shop. It delivers consistent pressure and long service life, though it requires space, a proper electrical hookup, and tolerance for loud operation.
Who this is for
I picked this unit because I needed a compact-yet-rugged two-stage compressor that could sit in a busy shop and run all day. It’s targeted at automotive shops, small manufacturers, and heavy maintenance environments where continuous duty and steady pressure are more important than whisper-quiet operation.
Key features and what I liked
This combination gives you a compressor that feels built to last. The vertical design saves floor space compared with horizontal receivers, and the cast-iron pump and crank components make maintenance straightforward.
Real-world use and limitations
In day-to-day use the unit pumps up reliably and keeps air tools and paint booths running without hiccups. Expect to plan for: heavier shipping and installation logistics, a dedicated 230V/28A circuit, and hearing protection around the unit. If noise and mobility are priorities, this is not the quietest or most portable option, but if uptime and longevity are your goals, it performs well.
2475N5FP 5HP Fully Packaged 230V Compressor
A convenient fully packaged 5 HP option that balances shop readiness with manageable size. It includes useful protections and conveniences, though you should inspect for transit damage and be prepared for moderate noise.
Why this packaged 5 HP appealed to me
I wanted a 5 HP compressor that came shop-ready — with automatic drain and low-oil safety — so this fully packaged variant stood out. For a garage or small shop running paint guns and pneumatic tools intermittently, the features reduce routine maintenance chores.
Features that matter in daily use
The packaged protections are genuinely handy: the automatic tank drain saves me from weekly manual bleeding, and the low-oil switch protects against damaging runs. The single-phase 230V option also fits many shop electrical panels without three-phase upgrades.
Things to watch for
Expect moderate noise and plan for a careful delivery. One buyer reported a broken drain fitting on arrival — that was an easy fix but worth checking when the unit is uncrated. Overall, it’s a practical option if you want most maintenance comfort features without stepping up to larger HP classes.
2475N5-V 5HP Type-30 Industrial Compressor
A classic Type-30 design that has earned its reputation in tough environments. It offers dependable performance and robust construction, although it’s a heavy, professional-grade piece of equipment that requires proper site preparation.
What sets it apart
I chose this 5 HP Type-30 because it represents the long-running Ingersoll Rand approach to heavy-duty compressors: simple, serviceable, and built to last. The model is targeted at shops and small factories that need reliable compressed air under continuous or near-continuous loads.
Notable features
Those features add up to a unit that’s easy to maintain and repair; the cast-iron pump tolerates demanding duty cycles and the intercooler helps with heat-related wear when you’re running long jobs.
Practical considerations
This model is best for users who prioritize durability and serviceability over portability and quietness. Plan for professional installation, and consider the extended warranty kit if you want longer pump coverage. If your workflow includes intermittent, light-duty tasks only, this might be more machine than you need.
IR Type-30 5HP 460V Three-Phase Compressor
A solid three-phase 5 HP option for industrial settings with 460V supply. It’s robust and dependable for continuous workloads, but it’s heavy and assumes you have the right electrical infrastructure and handling equipment.
Ideal environment
I consider this model for shops and light industrial floors that already have three-phase 460V service. The higher voltage and three-phase motor makes for efficient, reliable operation in multi-shift or continuous-duty environments.
Key capabilities
This combo gives consistent pressure and efficient motor operation under heavy duty. If you’re running multiple simultaneous air tools or testing equipment, the three-phase variant keeps things stable and energy-efficient.
Installation and limitations
Transport and setup are the two primary hurdles — plan for forklift delivery and a qualified electrician for wiring. It’s a professional machine: great for a shop but overkill for a home garage or occasional hobby use.
Final Thoughts
I recommend the 2545E10-VP 10HP Fully Packaged Industrial Compressor if you run a large shop or light manufacturing line and need sustained high CFM and uptime. It’s built for continuous production, easy to service, and pays back in reliability when downtime costs are real.
For most serious shops that want big capability without a complicated setup, pick the 2475N7.5-P 7.5HP Fully Packaged Compressor. It hits the sweet spot: plenty of air, helpful packaged features (aftercooler, auto tank drain, low-oil protection), and fewer maintenance headaches than a bare Type-30 unit. If you need compact shop power with fewer tradeoffs, that 7.5HP packaged unit is my go-to.
FAQs
Short answer: probably. These reciprocating units are heavy and awkward. Fully packaged models and tank-mounted Type-30s usually need a pallet jack, forklift, or professional delivery. Plan for at least two people and lifting gear, and confirm skid points before the delivery truck backs up.
Fully packaged units come with extras installed and wired: aftercoolers, automatic tank drains, controls and safety features. That means less setup and fewer surprises at install. Type-30 (bare or tank-mounted) compressors are rugged and often cheaper per CFM, but they demand more attention during install and more routine maintenance.
They’re loud. Reciprocating two-stage compressors are noisy beasts—especially the 7.5HP and 10HP machines. I recommend a dedicated compressor room, sound-dampening barriers, or locating the unit outside with proper weather protection. And yes, ear protection is a must when you’re near them.
Some Ingersoll Rand models are available in 230V single-phase (like the 2475N5FP 5HP packaged 230V). Others are three-phase or offered in multiple voltage configurations. Always check the model suffix and the nameplate. If your shop is single-phase and you want a three-phase unit, budget for a phase converter or an electrician to upgrade service.
They’re durable, but not maintenance-free. Daily: drain condensate from the tank (auto drains help). Weekly/monthly: check oil level, inspect belts and hoses, clean or change air filters. Oil changes typically happen after break-in (first 50 hours) and then on a regular schedule — often every few hundred hours depending on workload. Treat them well and they’ll run for years; ignore them and performance drops fast.
Go vertical if floor space is tight. Vertical two-stage units save footprint and are great in shops where space is premium. Horizontal/tank-mounted or skid-mounted units are easier to access for service and often handle high-demand duty cycles better. I chose vertical for tight shops and horizontal/skid for heavy continuous use.
Yes, a 7.5HP or 10HP reciprocating compressor is overkill for light intermittent use. For occasional hand tools, a smaller 2–5HP unit or a portable compressor is more economical. But if you run multiple tools at once, sandblast, or run tools continuously, stepping up to a 5HP+ unit (and especially the 7.5HP packaged models) pays off.
Title made me laugh — buying seven compressors sounds like a midlife crisis 😂
On a serious note, I run the 2340L5-V vertical 5 hp Type-30 in my small fabrication shop. It’s been stupidly reliable for years. The vertical footprint saved floor space and it’s so simple to service compared to some newer designs.
Only gripe: the startup surge is a thing — make sure your electrical can handle it. Also inspect for shipping gouges; mine arrived with a small dent in the cowling and the vendor swapped it quickly.
Glad to hear the 2340L5-V is treating you well — verticals are great for shops short on floor space. Good note on startup surge: check the motor listed amperage vs your breaker and consult an electrician for 3-phase vs single-phase concerns.
Shipping dents are so common, ugh. Always unwrap and inspect before signing. I once accepted a unit with a bent belt guard and had a nightmare getting the seller to pay for replacement.
Great roundup — thanks for doing the legwork! I’m torn between the 5 HP fully packaged (2475N5FP) and the 7.5 HP packaged (2475N7.5-P).
I work on car projects in a one-car garage: impact wrench, spray gun occasionally, and an air ratchet. Noise and footprint are big concerns, but I also don’t want to starve my tools when the compressor kicks on.
Has anyone run a 7.5 in a tight shop like that? Is the extra reliability worth the space/noise tradeoff? Also — how loud are these Type-30s in practice? My neighbor already hates me, so… 😬
Appreciate any real-world tips on placement, soundproofing, or whether I should stick to the 5HP packaged model.
I had a 5HP vertical (2340L5-V) in a one-car shop for a while. It handled air ratchets and a small sprayer okay but struggled a bit with sustained spray work. Noise wasn’t awful with some insulation panels — still loud when it unloaded though. If you only spray now and then, the 5HP will save you space.
Another tip: put a long line to a small receiver near your bench. The main tank can sit in a corner and the small local tank smooths pressure dips for short bursts (like impact guns).
Hi Laura — for typical garage use with occasional spray work, the 5HP packaged 2475N5FP is usually the better fit. It’s quieter and smaller, and the aftercooler/automatic drain help with finishing work. If you expect simultaneous heavy use (multiple tools at once) or long spray sessions, step up to 7.5HP. For sound reduction: put it on vibration mounts, build a ventilated enclosure, and place it as far from your workspace as practicable.
Quick question for anyone electrical-savvy: several models listed use 200V 3-phase, others 230V 1-phase, and one is 460V 3-phase. How big a pain is it to convert or get the right supply? My shop is 240V single-phase — can I run the 200V 3-phase model easily or do I need a VFD or transformer?
Also curious if the higher voltage 460V units are really necessary for small industrial shops or just for heavy plants. I don’t want to buy the wrong one and have to resell it later.
We used a rotary phase converter for a 3-phase 7.5HP when I moved into a building without 3-phase. It worked but added complexity and slight inefficiency. If you can, buy the unit that matches your shop’s electrical to avoid headaches.
Short answer: you’ll likely need different equipment or an electrician. Running a 3-phase motor where you only have single-phase usually requires a phase converter (static or rotary) or a VFD that supports 3-phase output, or getting the motor rewound. 460V is for plants with heavy mains; don’t buy 460V unless your facility already has that supply. Best to consult an electrician before ordering — it can be costly to change later.
I picked the 2475N5FP fully packaged 5HP for my small cabinet shop and honestly it’s been excellent — the automatic tank drain and low-oil protection have saved me time. Setup was straightforward and the unit had decent packaging, though it did arrive with a tiny scrape on the top (cosmetic only).
If you want something plug-and-play for a busy shop that doesn’t need tons of CFM, I’d recommend the 5HP packaged model. 👍
Maya — I already had a 230V 1-phase 30A circuit in the shop, so it was plug-and-play. Recommend checking the unit’s listed full-load amps vs your breaker size though.
Thanks for the feedback, Sophie — glad the packaged 5HP worked out. Cosmetic transit marks are common; always document and report them quickly to Amazon or the seller in case of hidden damage.
Sophie, did you have to get any special electrical work done or was your existing 230V circuit enough?
Carlos — the aftercooler + auto drain on the packaged model handled moisture pretty well for me. I still run a water separator and desiccant dryer when finishing high-end pieces, but for general use it’s fine.
Do you notice much condensation build-up? My shop’s humid and I’m worried about rust.
I’ve been eyeing the 10 HP 2545E10-VP for a small machine shop I’m scaling up. The expert rating is tempting (9.5/10) and “best for heavy-production” sounds spot-on, but man — that thing must be enormous and loud.
Questions: How do you factor in long-term uptime vs cost for a 10HP? Is it worth buying new off Amazon vs sourcing from a local dealer who might offer install/support? Also — does anyone have experience with the two-stage 7.5 (2475N7.5) vs the packaged 7.5N7.5-P? Are the extras (aftercooler, auto drain) really worth the price delta?
Sorry for the novella, I just don’t want to undersize and then regret it when I add another lathe or two. 😅
PS — shipping and site prep: anyone had to pour a pad for these or just bolt to existing concrete?
Adding: two-stage compressors generally handle continuous heavy-duty better at higher pressures. If you expect continuous multi-tool use, the higher-capacity Type-30 2-stage models are the safer bet.
Priya — for a growing machine shop, buying the 10HP from a local dealer is often worth the added cost because they can handle onsite setup, start-up checks, and quicker warranty service. Uptime vs cost: if lost production costs exceed the premium for a better support package, go bigger/better. The packaged 7.5 with aftercooler/auto drain reduces moisture issues and maintenance — I’d call those features worth it for finishing work or humidity-prone shops.
About pad: many shops simply bolt to a level concrete slab with anchors; 10HP units may need a thicker slab and vibration isolation depending on your floor construction. Consult an installer.
For me the aftercooler saved my paint booth. Moisture is the silent killer of pneumatic tools — auto drain + aftercooler = less rust. Worth every penny.
I work with a small shop that upgraded to the 10HP — they had to brace the slab and add isolation mounts. Uptime jumped and they could run multiple mills without pressure sag. Dealer support made the difference when it came to wiring.
